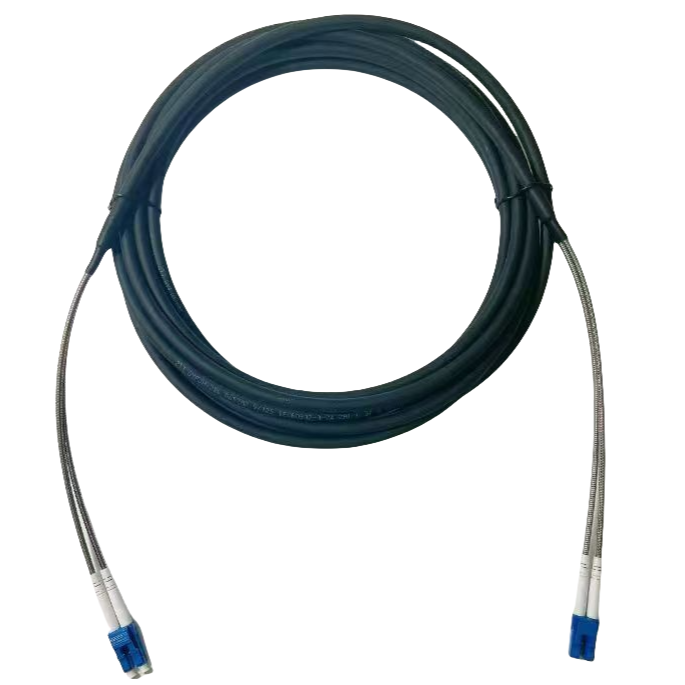

7.0mm 2 core duplex single mode armored fiber optic cable

what is armored fiber optic cable?

Hhd Armored fiber optic cable(spiral stainless steel armored fiber cableste) is a type of cabling designed to protect optical fibers from physical damage and environmental factors. These cables are reinforced with a protective layer made of 204/304 tainless steel ensuring durability in harsh conditions. Typically used in outdoor applications or areas where there is a risk of rodent damage, armored fiber optic cables provide a reliable solution for high-speed data transmission while maintaining the integrity of the fibers inside.

why use armored fiber optic cable

Armored fiber optic cables are designed for enhanced protection and durability, making them ideal for harsh environments. They offer superior resistance to physical damage, chemicals, and environmental factors, ensuring reliable data transmission. By using armored fiber optic cables, businesses can reduce downtime, lower maintenance costs, and improve network longevity, making them a smart choice for critical communications.

What is the difference between armored and non armored fiber optical cable

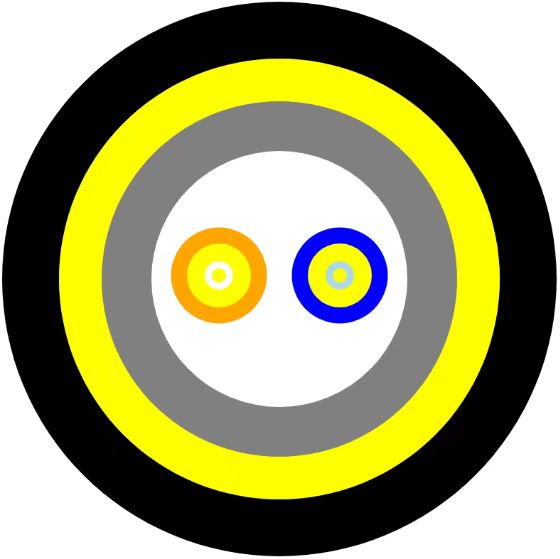

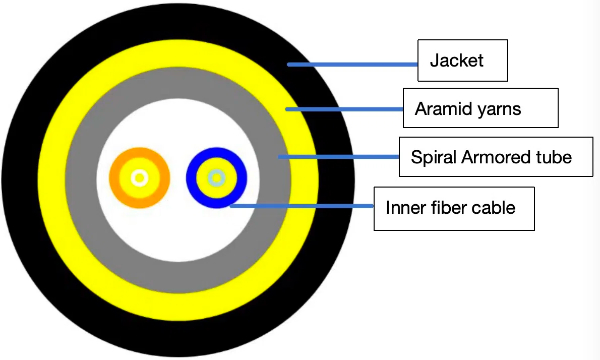

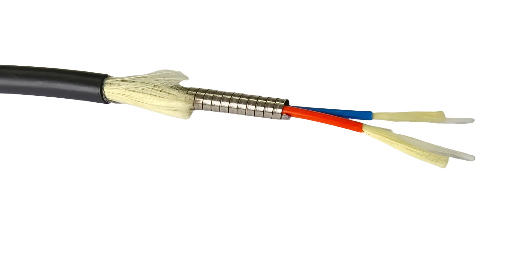

The structure of armored fiber cable:Outer jacket+kevlar+spiral stainless steel tube+fibers or bare fibers

The structure of non armored fiber optical cables:Outer jacket+kevlar+fibers

Application
1. Long-distance communication: Extended optical cables are suitable for scenarios that require long-distance communication, such as cross-city and cross-regional communication.
2. Security backup: Extended optical cables improve the fault tolerance of the network to a certain extent and become an important security backup solution.
3. Complex terrain: For areas with complex terrain, such as mountainous areas, forest areas, deserts, etc., the optical cable communication distance is limited, and extended optical cables can solve this problem.

4. optical communication equipment rooms and optical distribution frames;

5.long-distance, field, building wiring, trunking connectors;

Features

1.High-Tensile strength and compressive

2.Anti-trampling

3.Anti-rat bite

4.Double layer protection of LSZH /TPU outer sheath and Spiral armored tube

5.Suitable for harsh environments

6.Suitable for long-distance, field, building wiring, trunking connectors;

Cable specification

Parameter	Specification
Cable Type	7.0mm 2 core duplex single mode armored fiber
Cable Count	2 Core
Fiber Type	Single-Mode(OS2): 9/125 µm
	Multi-Mode: 50/125 µm or 62.5/125 µm(OM1/OM2/OM3/OM4/OM5)
Cable Diameter	Φ7.0 ± 0.2mm
Jacket Material	LSZH, RoHS-Compliant
Armor Type	Stainless Steel armor
Tensile Strength	≥ 600 N (Short-Term)
	≥ 300 N (Long-Term)
Crush Resistance	≥ 3000 N/10 cm
Bending Radius	Dynamic: 20x Cable Diamete
	Static: 10x Cable Diameter
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
Inner cable	PVC/LSZH 2.0mm fiber cable
Attenuation	Single-Mode:1310 nm @ 1550 nm
	Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth	Multi-Mode: ≥ 200 MHz·km @ 850
	≥ 500 MHz·km @ 1300 nm
Connector Options	LC, SC, ST, FC (Customizable)，MTP,MPT
Cable Weight	60kg/km
