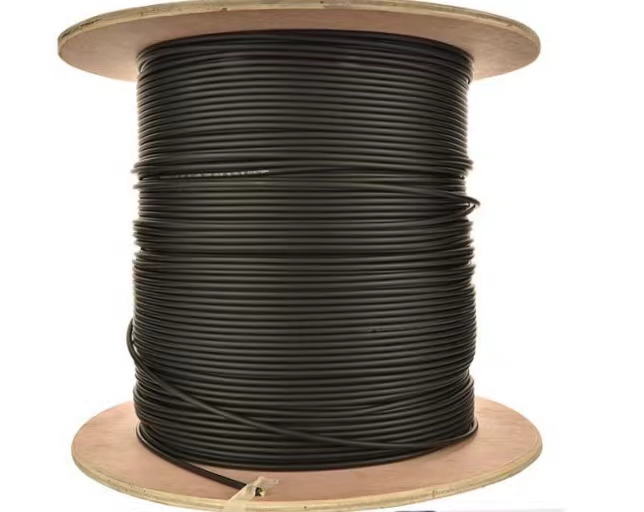

1000m 4.2mm 12f Singlemode Armored Fiber Optic Cable

Discover our high-quality 1000m 4.2mm Mini Armored Fiber Optic Cable, featuring 12 cores and a robust black LSZH (Low Smoke Zero Halogen) design. Ideal for a variety of installation environments, this armored cable provides excellent durability and protection against environmental factors, ensuring reliable data transmission. Perfect for telecommunications, data centers, and industrial applications. Optimize your network with this essential component for fast and secure connectivity.

Specification

Parameter	Specification
Cable Type	4.2 mm 12 core armored bare fiber cable
Cable Count	12 Core
Fiber Type	Single-Mode(OS2): 9/125 �m
	Multi-Mode: 50/125 �m or 62.5/125 �m(OM1/OM2/OM3/OM4/OM5)
Cable Diameter	?4.2� 0.2mm
Jacket Material	LSZH, RoHS-Compliant
Armor Type	Stainless Steel armor
Tensile Strength	? 400 N (Short-Term)
	? 200 N (Long-Term)
Crush Resistance	? 3500 N/10 cm
Bending Radius	Dynamic: 20x Cable Diamete
	Static: 10x Cable Diameter
Operating Temperature	-40�C to +85�C
Storage Temperature	-40�C to +85�C
Inner cable	PVC/LSZH 2.0mm fiber cable
Attenuation	Single-Mode:1310 nm @ 1550 nm
	Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth	Multi-Mode: ? 200 MHz�km @ 850
	? 500 MHz�km @ 1300 nm
Connector Options	LC, SC, ST, FC (Customizable)?MTP,MPT
Cable Weight	13kgs/km

Application

*Optical Patch Cords

*Interconnects in Optical Communication Equipment Rooms

*Distribution Frames, and FTTX Networks
8Optical Device Termination & Integration,

*Indoor Horizontal/Vertical Cabling,

*LAN Infrastructure, and Multi-Medium Networks,

*Date centers.
*Building Cabling

Technical Features

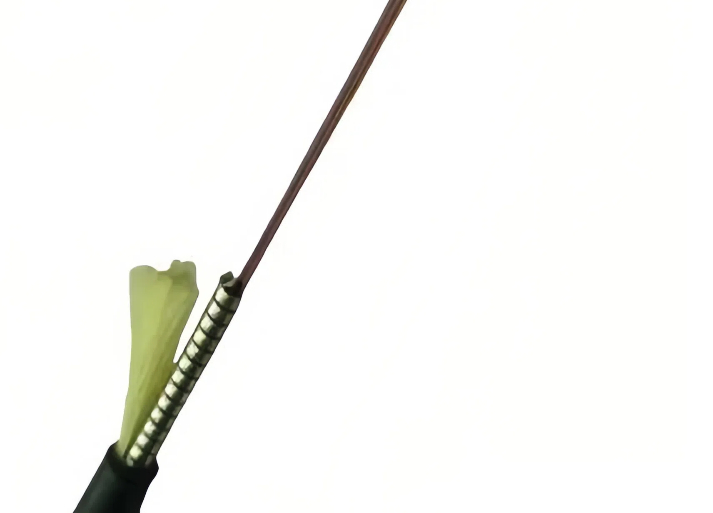

*Metal Tube Protection

Reinforced stainless steel metal tubing safeguards high-speed network infrastructure against physical damage.

*Animal Damage Resistance

Engineered to prevent rodent/animal biting and chewing, ensuring reliable outdoor/indoor deployment.

*Superior Mechanical & Environmental Performance

High tensile stress and anti-pressure.Soft, bend-insensitive structureCompliant with harsh environments

Customizable Functionality

Tailored solutions to meet diverse customer requirements (e.g., armor type, jacket materials).

Universal Connector Compatibility,Supports all major connector types: FC, ST, LC, MPO MTP, etc.

High-Density Cabling Capability

Need Help Choosing the Right  Armored fiber optic cable?

If you're unsure which Armored fiber optic cable best fits your needs, our team is here to help. Whether you require standard single mode options or a customized solution, reach out to us at sales@hhdfiber.com for expert guidance. We can walk you through available specifications and connector options�like LC, SC, ST, or FC�and help tailor a patch cord to match your exact requirements. Same-day shipping may be available for many configurations, so you�ll have the perfect cable for your project when you need it.

Custom Options Available for 3-15days Shipment

Alongside our standard Armored fiber optic cable, we provide a tailored custom Armored fiber optic cable service. Choose from a wide range of connector types�including LC, SC, ST, and FC�as well as various cable lengths and fiber specifications. and can  ship within 3-7days to meet your urgent project needs.

If you�re unsure about the best configuration for your application, reach out to our team for guidance�our expertise ensures you get exactly what you need, exactly when you need it.
