OM3 Armored Fiber Optic Cable|2-Core LSZH Zipcord Duplex

OM3 dual-core armored cable|side-by-side armored patch cord | flame-retardant rodent-proof cable

HHD Fiber’s 2-core aqua OM3 duplex indoor armored fiber cable. Features spiral stainless-steel armor, LSZH jacket, and rodent resistance for data centers and server rooms.

High-density 10GbE 50/125 OM3 duplex zipcord cable with flexible steel armor. Supports LC/SC/FC/ST connectors, Corning fiber options & custom lengths.

Each subunit contains laser-optimized OM3 50/125 µm multimode fiber protected by aramid yarn and flexible spiral stainless-steel armor. This construction improves resistance to crushing, accidental pulling, rodent damage and repeated handling while remaining flexible enough for indoor routing.

It is suitable for data centers, equipment rooms, industrial networks, indoor CCTV systems and other installations where a standard duplex patch cord may require additional mechanical protection.

Key Features

* OM3 50/125 µm multimode fiber
* Duplex zipcord construction with two side-by-side subunits
* Same-color aqua LSZH jackets on both legs
* Flexible spiral stainless-steel armor
* Improved resistance to crushing, pulling and rodent damage
* Easy separation of the two legs during termination
* Low-smoke, zero-halogen jacket for indoor installations
* LC, SC, FC or ST connector configurations
* Custom lengths, labels, breakout lengths and packaging
* Corning or YOFC fiber options
* Standard-loss and low-loss connector options
* 100% tested before shipment

Product Construction

1. OM3 50/125 µm optical fiber
2. Tight buffer
3. Aramid yarn strength member
4. Flexible spiral stainless-steel armor
5. Aqua LSZH outer jacket
6. Side-by-side duplex zipcord web

Technical Specifications

OM3 Dual-Core Armored Fiber Cable LSZH Jacket

Parameter	Specification
Cable Type	OM3 Dual-Core Armored Fiber Cable LSZH Jacket
Cable Count	Dual-Core
Fiber Type	Option:Single-Mode(OS2): 9/125 µm
	Multi-Mode: 50/125 µm or 62.5/125 µm(OM1/OM2/OM3/OM4/OM5)
Cable Diameter	Φ3.0 ± 0.1 mm
Jacket Material	LSZH flame-retardant
Armor Type	Stainless Steel armor
Tensile Strength	≥ 600 N (Short-Term)
	≥ 300 N (Long-Term)
Crush Resistance	≥ 3500 N/10 cm
Bending Radius	Dynamic: 20x Cable Diamete
	Static: 10x Cable Diameter
Operating Temperature	-40℃ ~ +85℃
Jacket	RoHS-Compliant
Attenuation	Single-Mode:1310 nm @ 1550 nm
	Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth	Multi-Mode: ≥ 200 MHz·km @ 850
	≥ 500 MHz·km @ 1300 nm
Connector Options	LC, SC, ST, FC(Customizable)
Cable Weight	21kg/km

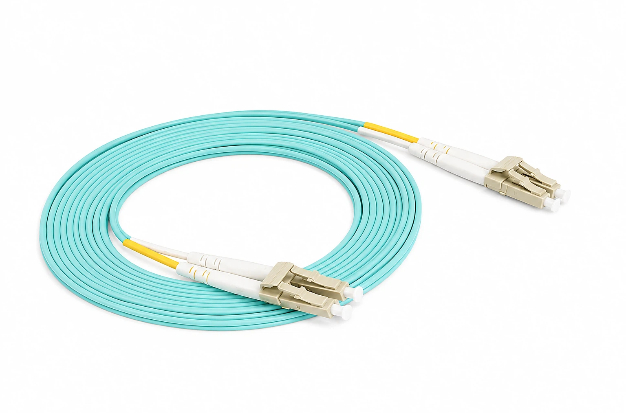

LC to lC Duplex 2-core OM3 armored fiber optic patch cords

Typical Applications

Data center equipment connections
Server rooms and network cabinets
MDF and IDF rooms
Indoor industrial Ethernet networks
CCTV and security systems
Factory automation equipment
Ceiling and utility-space installations
Frequently maintained equipment racks
Indoor routes with crushing or rodent risks
High-speed OM3 multimode links

For outdoor exposure, water, sunlight or repeated field deployment, choose an outdoor TPU armored cable instead of this indoor LSZH version.

Customization Options

HHD Fiber can customize this OM3 duplex armored cable according to project requirements:
LC–LC, LC–SC, SC–SC, FC or ST connectors
Customized cable lengths
Customized breakout lengths
Same-color aqua jackets or alternative jacket colors
A/B identification printing or labels
Standard-loss or low-loss connector grades
Options Corning OM3 fiber
One-end or two-end termination
Customer logo and cable marking
OEM packaging
Individual test reports on request

Quality Control

Available Options

Fiber Type: Multimode OM1 OM2 OM3 OM4 OM5
Fiber Count: Duplex / 2 Fibers
Connector: LC, SC, ST or FC
Polish Type: UPC or APC
Cable Diameter: 3.0 mm/2.0mm
Jacket: LSZH/OFNR/OFNP
Cable Length: Customizable
Connector Configuration: LC–LC, LC–SC,ST-ST,FC-FC or customized

Every connectorized assembly is tested before shipment. Available inspections include:
Fiber continuity
Connector insertion loss
Connector return loss
Connector end-face quality
Cable length
Duplex polarity
Jacket appearance
Mechanical construction
Labeling accuracy

Standard and individual test documentation can be provided according to project requirements.

Frequently Asked Questions

What is an OM3 duplex zipcord cable?

It is a two-fiber multimode cable made from two side-by-side subunits. Each leg can be separated near the termination point, making the cable convenient for duplex LC, SC, FC or ST connections.

Is this cable rodent-proof?

The spiral stainless-steel armor significantly improves resistance to rodent bites compared with a standard unarmored patch cord. Actual protection depends on installation conditions and exposure; no cable should be described as absolutely rodent-proof in every environment.

Can it be installed outdoors?

This LSZH version is designed primarily for indoor use. For outdoor installation, HHD Fiber recommends a TPU- or PE-jacketed armored cable selected according to UV, water and temperature requirements.

Can it be supplied as a finished patch cord?

Yes. It can be supplied as bulk cable, one-end terminated cable or a fully connectorized duplex armored patch cord with customized length, connectors, labels and packaging.

Request Specifications and Pricing

Please provide the following information for quotation:

Required cable length
Connector configuration
Quantity
Standard-loss or low-loss requirement
Breakout length
Labeling and packaging requirements

Required test documentation

Contact HHD Fiber for customized armored fiber optic solutions.
