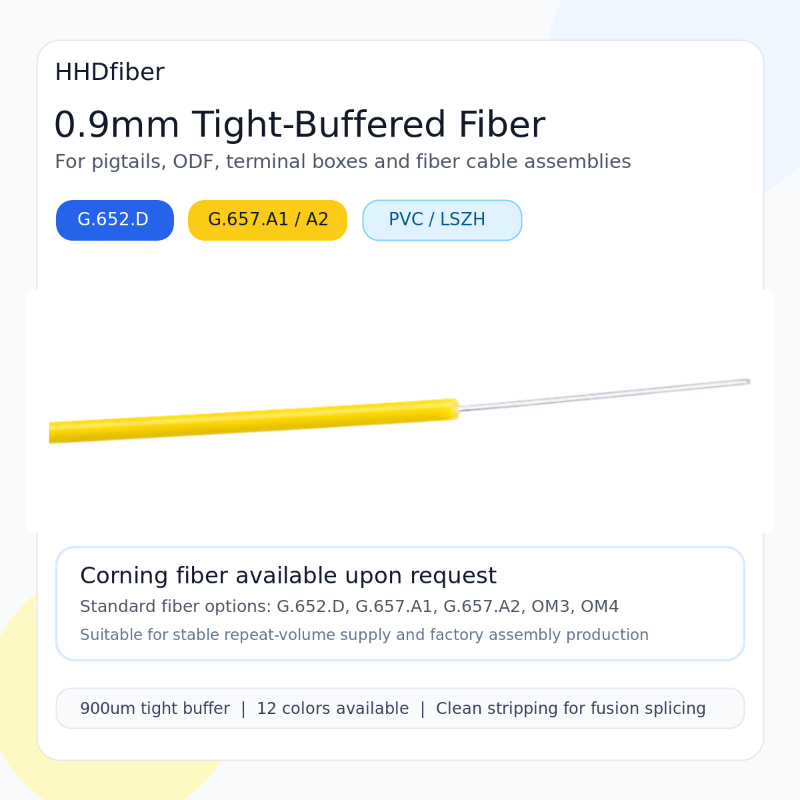

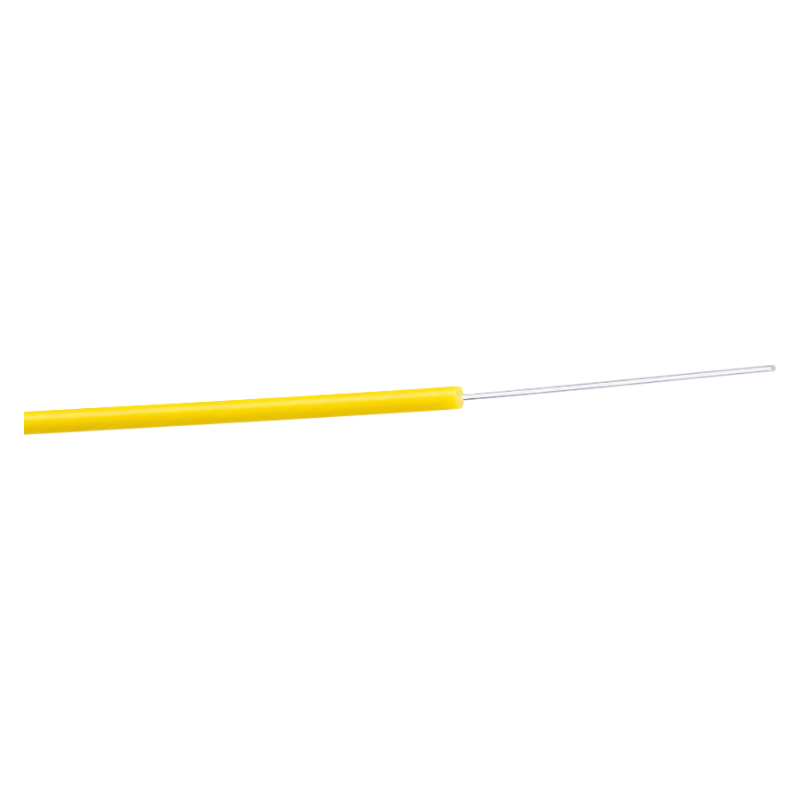

0.9mm Tight-Buffered Fiber for Pigtails, ODF and FTTH

0.9mm Tight-Buffered Fiber for Pigtails, ODF and Terminal Boxes

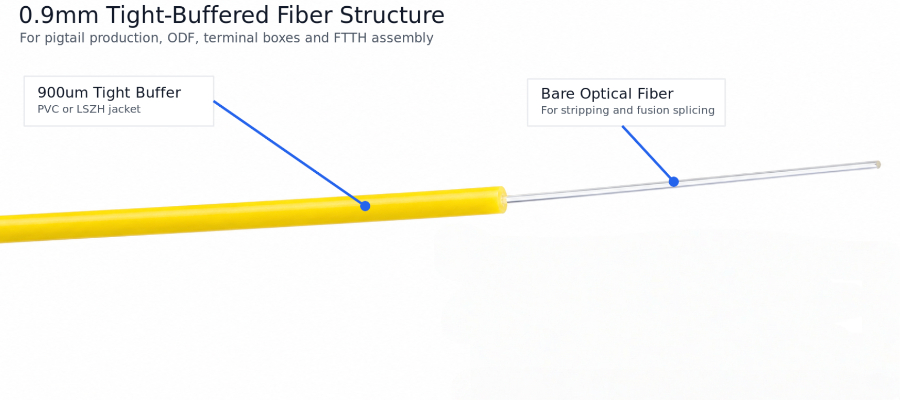

HHD supplies 0.9mm tight-buffered fiber for pigtail production, ODF wiring, terminal boxes, FTTH/FTTx, CATV and fiber cable assembly. PVC, LSZH and Corning fiber options are available.


Applications of 0.9mm Tight-Buffered Fiber Cable


Pigtail production:LC/SC/FC/ST Fiber optic pigtail production

ODF:ODF internal wiring and splicing

Fiber terminal box and distribution box

FTTH, FTTx and PON access networks

CATV, FTTH TV service

Telecom network:Telecom access network termination

Data center:Data center patch panel and splice tray

LAN/WAN fiber network cabling

Patch cord assembly:Patch cord and fiber assembly production

Armored fiber cable assembly


0.9mm Tight-Buffered Fiber vs 2.0/3.0mm Simplex and Duplex Fiber Optic Cable Specifications

Parameter 0.9mm Tight-Buffered Fiber 2.0/3.0mm Simplex Cable 2.0/3.0mm Duplex Cable
Product Type Tight-buffered fiber / 900um fiber Simplex fiber optic cable Duplex fiber optic cable
/Zipcord cable
Fiber Count 1 fiber 1 fiber 2 fibers
Fiber Type G.652.D / G.657.A1 / G.657.A2
/ OM1-OM5 		G.652.D / G.657.A1 / G.657.A2
/ OM1-OM5 		G.652.D / G.657.A1 / G.657.A2
/ OM1-OM5
Mode Singlemode / Multimode Singlemode / Multimode Singlemode / Multimode
Core/Cladding 9/125, 50/125, 62.5/125 9/125, 50/125, 62.5/125 9/125, 50/125, 62.5/125
Cable Diameter 0.9mm 2.0mm or 3.0mm 2.0mm x 2 legs / 3.0mm x 2 legs
Jacket Material PVC / LSZH PVC / LSZH PVC / LSZH
Jacket Color 12 colors / Yellow / Aqua
/ Orange etc. 		Yellow, Aqua, Orange,
Violet, customized 		Yellow, Aqua, Orange,
Violet, customized
Strength Member aramid yarn aramid yarn
Fiber Brand Option Standard fiber,Corning fiber available upon request Standard fiber,
Corning fiber option 		Standard fiber,
Corning fiber option
Attenuation 1310/1550nm or 850/1300nm 1310/1550nm or 850/1300nm 1310/1550nm or 850/1300nm
Minimum Bend Radius Static / dynamic Static
dynamic 		Static
dynamic
Tensile Strength Short-term
long-term 		Short-term
long-term
Crush Resistance
Operating Temperature -20°C to +70°C -20°C to +70°C -20°C to +70°C
Application Pigtail, ODF, terminal box, FTTH assembly Patch cord, pigtail,
indoor cabling 		Duplex patch cord, patch panel,
equipment link
Packing Reel / carton, km per reel Reel / drum / carton Reel / drum / carton
Compliance RoH RoHS RoHS
