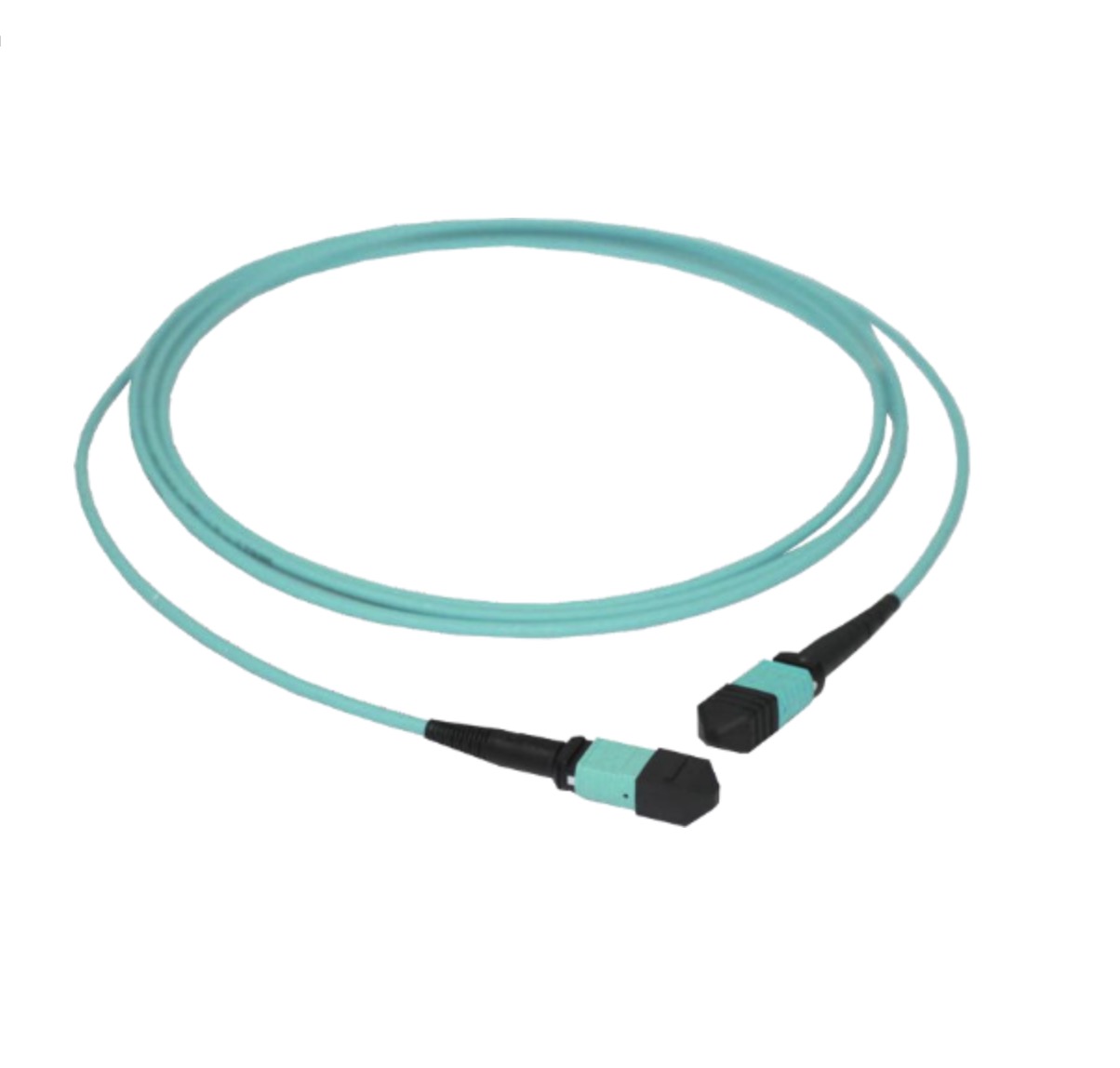

40G 100G 400G MPO to MPO MTP Trunk Cable

Explore our comprehensive range of 40G 100G 400G MPO to MPO MTP Trunk Cable including high-performance MPO trunk cables, efficient MTP trunk cables, and reliable MPO patch cords. Ideal for data centers and network solutions, our fiber trunk cables ensure optimal speed and connectivity. Discover the best fiber optic solutions for your connectivity needs.

Cable Specification

Parameter	Specification
Cable Type	3.0mm 12core 24 core MPO MTP Trunk Cable
Cable Count	12，24
Fiber Type	Single-Mode(OS2): 9/125 µm
	Multi-Mode: 50/125 µm or 62.5/125 µm(OM1/OM2/OM3/OM4/OM5)
Cable Diameter	Φ3.0mm
Jacket Material	OFNR,OFNP ,LSZH, RoHS-Compliant
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
Bare Fiber Options	YOFC/Corning/other
Attenuation	Single-Mode:1310 nm @ 1550 nm
	Multi-Mode: @ 850 nm @ 1300 nm，Multi-Mode: @ 850 nm @ 1300 nm

Item	Multimode		Single-mode
	(PC)		(APC)
Insertion Loss(IL)	Standard Loss	Reduced Loss	Standard Loss	Reduced Loss
	≤0.5dB	≤0.3dB	≤0.7dB	≥0.35dB
Return Loss Return Loss(RL)	≥25dB		≥60dB
Operating Temperature(℃)	-40~+85
Testing Wavelength(NM)	850/1300		1310/1550

Compliance with Global Standards

MPO connectors are designed to meet stringent international standards, such as IEC-61754-7 and GR-1435. This ensures high performance, reliability, and compatibility with various optical networking systems. By adhering to these standards, users can trust the quality and interoperability of their connections, facilitating seamless integration in any network setup.

Quick Plug-and-Play Installation

The innovative quick plug-and-play design of MPO connectors significantly enhances construction efficiency. This feature allows for rapid deployment, minimizing installation time and effort. Users can easily connect and disconnect without complicated procedures, making it an ideal choice for projects that demand speed and flexibility. Streamlined setups lead to reduced labor costs and faster project completion.

Versatile Applications

MPO connectors are suitable for various applications including data centers, telecommunications, and high-speed networks. Their compliance with established standards makes them versatile for different environments, ensuring optimal performance in diverse conditions. Whether installing a large fiber optic network or upgrading an existing system, MPO connectors provide reliable solutions tailored to specific needs.

High Cabling Density

Our high cabling density infrastructure supports 12 to 144 fiber connections, significantly optimizing your installation space. This feature facilitates easier management and organization while allowing for substantial scalability as your network demands grow.

Versatile Compatibility

Designed for diverse application scenarios, our cabling solutions offer excellent compatibility with a wide range of network devices and systems. This ensures seamless integration across various technologies, making it an ideal choice for both industrial and commercial setups.

Minimal Signal Loss

Experience enhanced performance with minimal signal loss in our fiber connections. Our advanced technology and quality materials ensure that your data transmissions maintain integrity over long distances, providing reliable and efficient network performance.

Robust Performance

The fiber connections not only minimize loss but also ensure robust performance under various environmental conditions. Whether used in high-traffic data centers or remote installations, our solutions guarantee consistent communication and data transfer.

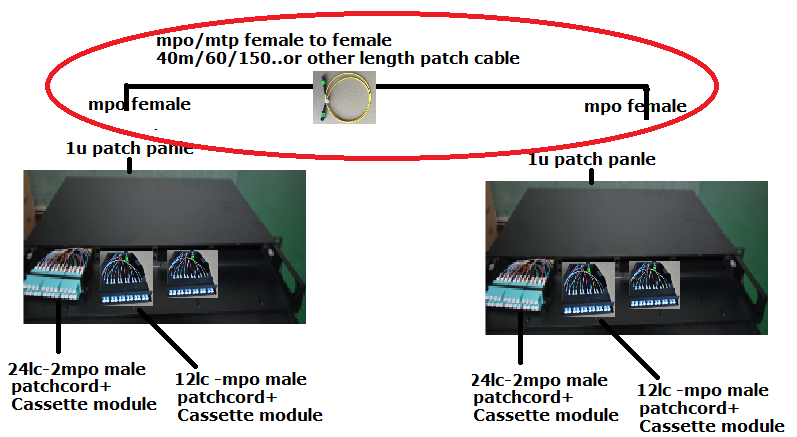

Schematic Diagram of MPO/MTP Female - to - Female Fiber Optic Patch Cord Connecting 1U Patch Panel System
