Armored MPO to MPO Fiber Jumper Cable Single Mode APC

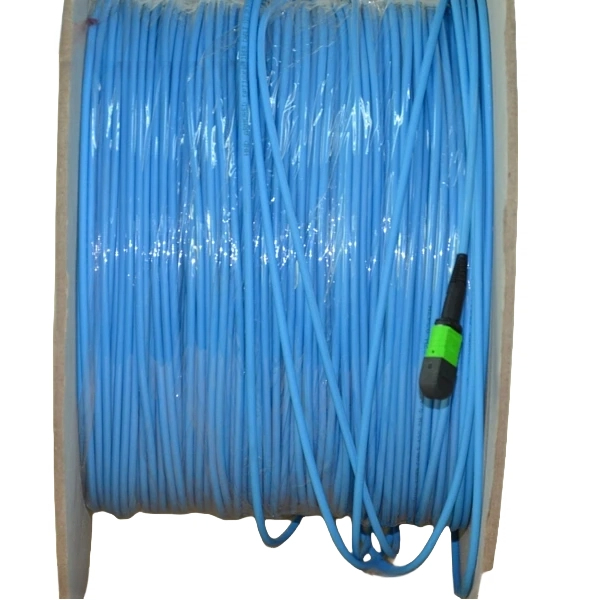

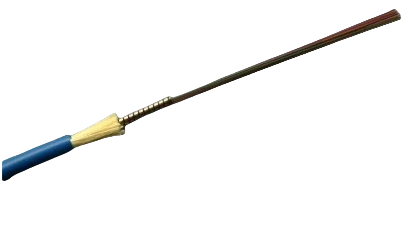

I’m single-mode—so why picture show you am I blue instead of yellow? Because I’m armored! Look, there’s a spiral stainless steel tube protecting my fibers! I shield your network from animal bites, trampling, and being run over by car wheels. That’s me! Don’t be fooled by my 3.0mm outer diameter. I may look plain, with my structure hidden from view, but I’m packed with power. I’m the armored single-mode MPO-to-MPO Patchcord or you can call me mpo fiber patch cable.

MPO/MTP to MPO/MTP Fiber Patch Cables Parameter

Item	Multimode		Single-mode
	(PC)		(APC)
Insertion Loss(IL)	Standard Loss	Reduced Loss	Standard Loss	Reduced Loss
	≤0.5dB	≤0.3dB	≤0.7dB	≤0.35dB
Return Loss Return Loss(RL)	≥25dB		≥60dB
Operating Temperature(℃)	-40~+85
Testing Wavelength(NM)	850/1300		1310/1550

Regarding insertion loss, you can choose between Standard Loss (≤0.7dB) or Reduced Loss (≤0.35dB). The MPO APC connectors are green.

Cables Parameter

Parameter	MPO to MPO Fiber jumper cable 3.0mm
Fiber Type	Single-Mode (OS2)
Core Diameter	Single-Mode: 9/125 µm
Cable Diameter	3.0mm mm± 0.2, (3.5mm± 0.2,4.2mm± 0.2)
Jacket Material	LSZH/OFNR/OFNP
Armor Type	Stainless Steel armor
Tensile Strength	≥ 400 N (Short-Term)
	≥ 200 N (Long-Term)
Crush Resistance	≥ 3500 N/100mm
Bending Radius	Dynamic: 20x Cable Diamete
	Static: 10x Cable Diameter
Operating Temperature	-40°C to +80°C
Storage Temperature	-40°C to +80°C
Attenuation	Single-Mode:1310 nm @ 1550 nm
Connector Options	MTP/MPO (Customizable)
Cable weight	11kgs/km,15kgs/km,19kgs/km
Application	Indoor,ODF,Date center

Regarding cable diameters, you can choose from 3.0mm, 3.5mm, or 4.2mm armored fiber cables. These cables are flexible and lightweight, and their colors can be customized to your preference—options include blue, yellow, gray, red, and more.

For MPO/MTP connectors, you can choose an economical MPO option or opt for higher-end ones from Japan SENKO or US Conec—simply select the connector that best fits your needs.

MPO to MPO Fiber Jumper Cable: High-Density Solutions for Key Applications

MPO (Multi-fiber Push On) to MPO jumper cables, as high-density fiber optic connection solutions, excel in scenarios demanding high bandwidth and compact cabling. Engineered to accommodate multiple fibers (4, 8, 12, 24 cores, etc.) with a small form factor and high transmission efficiency, these jumper cables are integral to modern network infrastructures. Below are their primary use cases:

Data Centers

MPO to MPO jumper cables streamline high-density cabling between servers, switches, and storage devices. By enabling simultaneous multi-core fiber connections via a single interface, they drastically reduce cabinet clutter and simplify 布线 complexity. Ideal for high-speed transmission, they support 100G, 400G, and next-gen Ethernet protocols, making them critical for cloud computing and big data storage—powering rapid, massive data interaction in data centers.

Telecommunications Networks

In backbone and metro networks, MPO to MPO jumper cables accelerate deployment of high-capacity fiber links for long-haul transmission, minimizing connections and boosting stability. They’re equally vital for 5G infrastructure, supporting base station backhaul and aggregation layer connections to meet high-frequency, large-bandwidth demands. For FTTH (Fiber to the Home) expansion in dense areas (office parks, campuses), these jumpers simplify 对接 between distribution boxes and end devices.

Broadcasting & Media

MPO to MPO jumper cables are indispensable for HD, 4K, and 8K video transmission in TV stations and production studios. Their multi-core parallel design ensures low-latency, synchronized signal delivery, eliminating bandwidth bottlenecks of single-fiber setups—critical for real-time, high-quality media workflows.

Medical & Research Facilities

In healthcare, MPO to MPO jumper cables enable simultaneous transmission of multi-channel images and control signals for devices like endoscopes and high-res medical imagers, leveraging fiber’s anti-electromagnetic interference properties to protect sensitive equipment. In research labs (particle physics, astronomy), they support high-density fiber links for real-time transmission of massive experimental data.

Industrial Environments

Tough enough for industrial automation, MPO to MPO jumper cables withstand high temperatures, vibrations, and harsh conditions in smart factories—facilitating high-speed data exchange between robots and sensor networks, ensuring reliable operation in rugged settings.

Why MPO to MPO Fiber Jumper Cables?

With core strengths in high density, high bandwidth, and easy deployment, MPO to MPO jumper cables are irreplaceable where space is limited and rapid, large-scale fiber connections are needed. As 5G, AI, and supercomputing advance, their role in powering next-gen networks continues to grow.
