Outdoor Fiber Cable

single mode armored fiber

Price：Negotiable

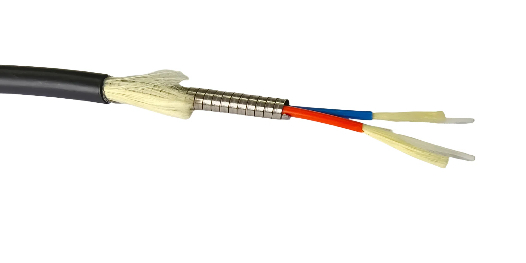

7.0mm 2 core duplex single mode armored fiber

Application
1. Long-distance communication: Extended optical cables are suitable for scenarios that require long-distance communication, such as cross-city and cross-regional communication.
2. Security backup: Extended optical cables improve the fault tolerance of the network to a certain extent and become an important security backup solution.
3. Complex terrain: For areas with complex terrain, such as mountainous areas, forest areas, deserts, etc., the optical cable communication distance is limited, and extended optical cables can solve this problem.

4. optical communication equipment rooms and optical distribution frames;

5.long-distance, field, building wiring, trunking connectors;

Features

1.High-Tensile strength and compressive

2.Anti-trampling

3.Anti-rat bite

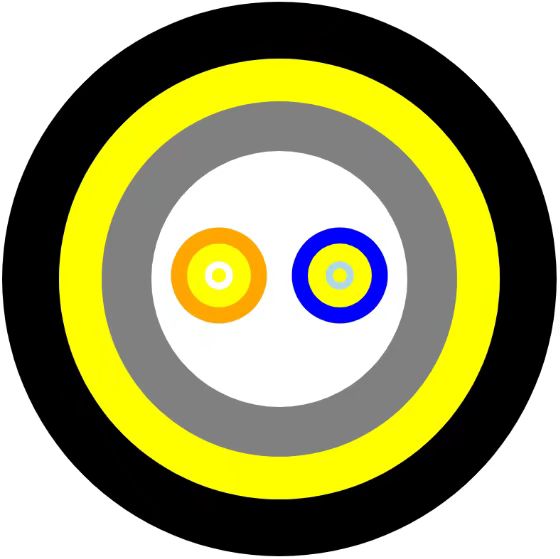

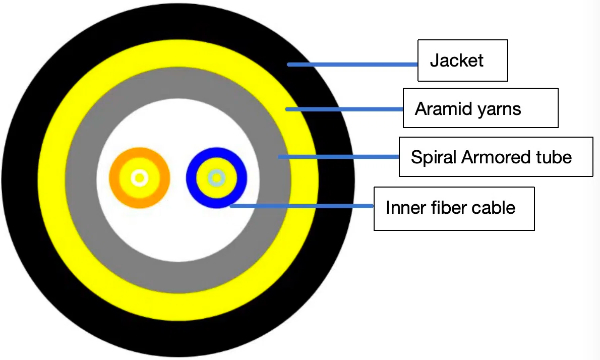

4.Double layer protection of LSZH /TPU outer sheath and Spiral armored tube

5.Suitable for harsh environments

6.Suitable for long-distance, field, building wiring, trunking connectors;

Cable specification

Parameter	Specification
Cable Type	7.0mm 2 core duplex single mode armored fiber
Cable Count	2 Core
Fiber Type	Single-Mode(OS2): 9/125 µm
Fiber Type	Multi-Mode: 50/125 µm or 62.5/125 µm(OM1/OM2/OM3/OM4/OM5)
Cable Diameter	Φ7.0 ± 0.2mm
Jacket Material	LSZH, RoHS-Compliant
Armor Type	Stainless Steel armor
Tensile Strength	≥ 600 N (Short-Term)
Tensile Strength	≥ 300 N (Long-Term)
Crush Resistance	≥ 3000 N/10 cm
Bending Radius	Dynamic: 20x Cable Diamete
Bending Radius	Static: 10x Cable Diameter
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
Inner cable	PVC/LSZH 2.0mm fiber cable
Attenuation	Single-Mode:1310 nm @ 1550 nm
Attenuation	Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth	Multi-Mode: ≥ 200 MHz·km @ 850
Bandwidth	≥ 500 MHz·km @ 1300 nm

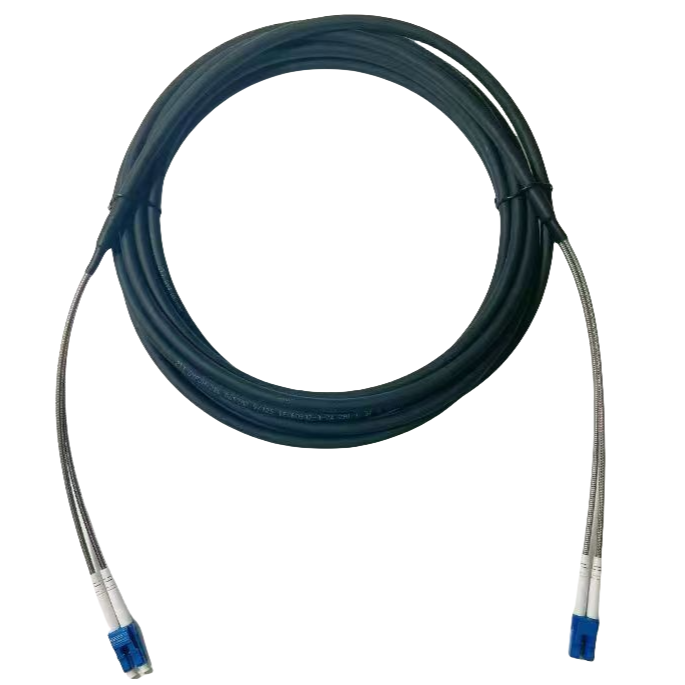

Connector Options	LC, SC, ST, FC (Customizable)，MTP,MPT
Cable Weight	60kg/km
