Outdoor armored fiber cable

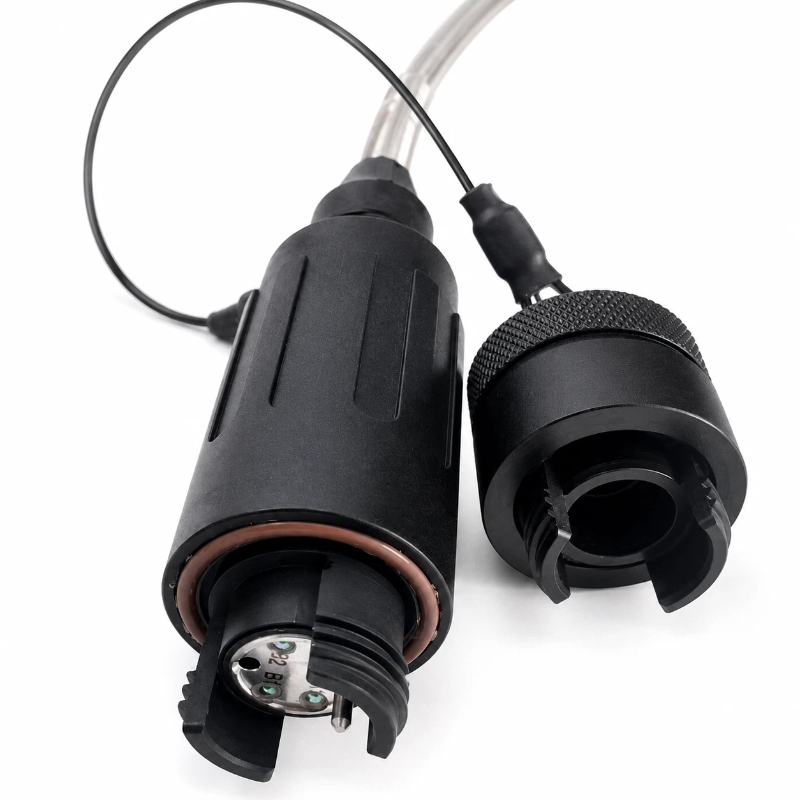

Expanded Beam Cable

Price：Negotiable

Inquiry

Email:sales@hhdfiber.com

Expanded Beam Cable｜4.0mm-6.0mm 4F Outdoor Flexible Armored Fiber Cable

4.0mm-6.0mm Outdoor Armored Fiber Cable | Flexible Stainless-Steel Tactical Fibre

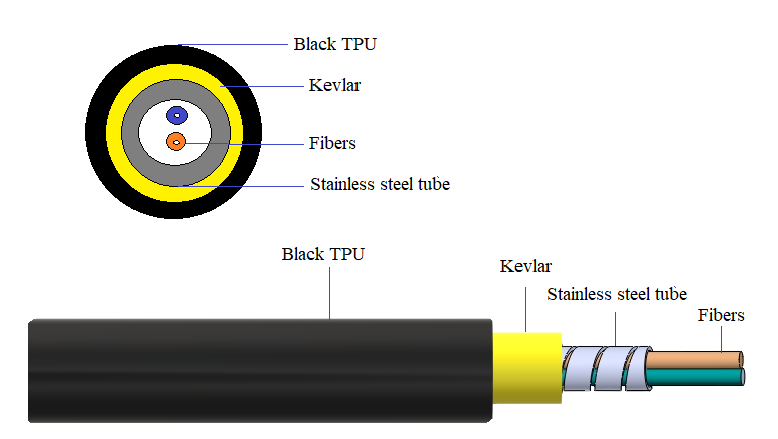

Cable Stucture 1.(2F,4F,8F,12F) with Metal Braidng type.

Applications

*Live,Musicevent like Concert/Spring Festival Gala

*Military

*Emergency
*Camera

*Metro

*Tactical, Field
3、Features
*Good mechanical and environmental characteristics;
*Soft, flexible, solid, easy to splice ，It’s especially applied to optical long-distance,field, building wiring, trunking connectors;

Cable parameters

Cable type

Cable Diameter mm

Stainless steel tube diameter

Tight-buffered fiber diameter mm

4.0GJFKJU

Φ4.0±0.2

Φ1.8±0.1

Φ0.5

Cable type	Cable Diameter (mm)	Cable weight KG/KM	Tensile N		Bend radius (mm)*		Crush N/100mm
			Short time	Long time	dynamic	static
4.0GJFKJZ	Φ4.0±0.2	16	450	300	60	30	3000
Operating Temperature -40℃ to +120℃
