4 Channel Expanded Beam Tactical Fiber Cable | Plug to Plug

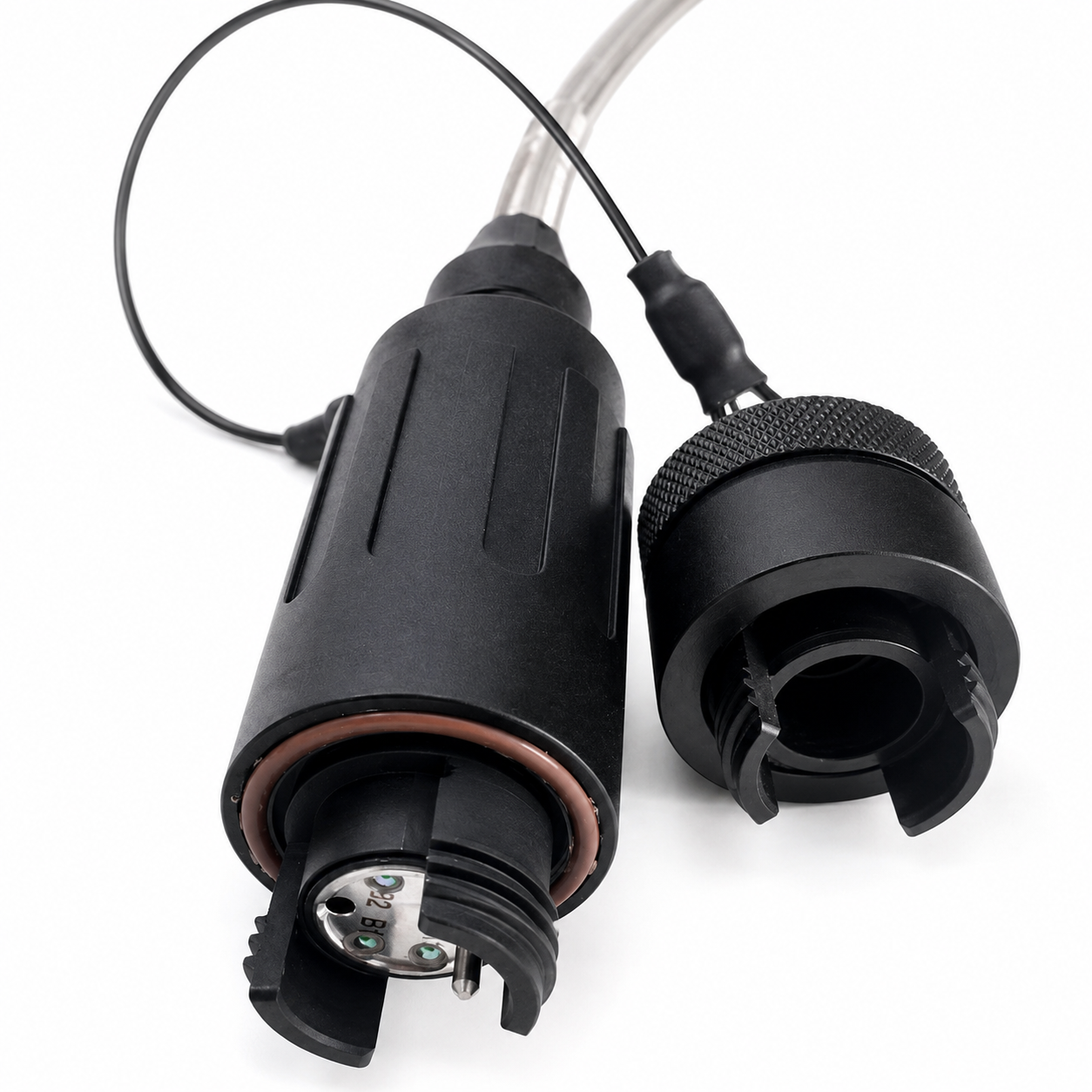

This pre-terminated 4 channel expanded beam fiber optic cable is a complete plug-to-plug tactical fiber cable assembly. Each end is fitted with a rugged metal-shell 4-channel expanded beam plug, factory terminated to a flexible 4-fiber outdoor armored cable for rapid deployment, connection and retrieval.

It is supplied as a finished product, not bare cable, so no onsite fiber termination is required.

The metal expanded beam connectors are rated for 1,000 mating cycles and are designed for demanding field environments. Expanded beam optics help maintain reliable connection performance where dust, vibration and repeated handling can affect conventional physical-contact fiber connectors.

Combined with a black TPU jacket and flexible stainless steel armor, this tactical fiber cable is built for repeated reel deployment, temporary networks and mobile fiber links.

Finished Plug-to-Plug Cable Assembly

This product is commonly searched and described as:

4 Channel Plug to Plug Connector Cable Assembly
4 Channel Expanded Beam Cable Assembly
Expanded Beam Plug Connector Cable
Pre-Terminated Tactical Fiber Cable
4 Fiber Tactical Fiber Optic Cable
Rugged Outdoor Fiber Optic Cable Assembly

Each end uses a cable-mounted expanded beam plug, sometimes called an inline plug or cable plug. The hermaphroditic plug-to-plug configuration supports fast extension of tactical fiber runs and field equipment connections.

Typical Applications

Tactical communications and temporary command networks
Live broadcast, sports venues, music events and mobile production
Emergency restoration and disaster-recovery communication
Outdoor CCTV, perimeter security and surveillance systems
Construction sites, mining, industrial plants and remote locations
Military, training and field-deployable communication networks
Cable and Assembly Specifications

Cable and Assembly Specifications

Parameter	Specification
Cable Type	Outdoor Armored Fiber Optic Cable 4 Core
Cable Count	4 Core
Fiber Type	Single-Mode(OS2): 9/125 µm
	Multi-Mode: 50/125 µm or 62.5/125 µm(OM1/OM2/OM3/OM4/OM5)
Cable Diameter	Φ4.5 ± 0.2 mm，6.0 ± 0.25 mm
Jacket Material	TPU, RoHS-Compliant
Armor Type	Stainless Steel armor
Tensile Strength	≥ 800 N (Short-Term)
	≥ 500 N (Long-Term)
Crush Resistance	≥ 3000 N/10 cm
Bending Radius	Dynamic: 20x Cable Diamete
	Static: 10x Cable Diameter
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
TPU Jacket	Rodentproof,UV-Proof
Attenuation	Single-Mode:1310 nm @ 1550 nm
	Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth	Multi-Mode: ≥ 200 MHz·km @ 850
	≥ 500 MHz·km @ 1300 nm
Connector Options	LC, SC, ST, FC (Customizable)
Cable Weight	27.5kg/km

Custom Configuration

Each assembly is built to the project requirement. Please specify:

* Fiber type: OS2, OM3, OM4 or other required fiber
* Cable length and quantity
* Connector configuration at both ends
* Connector keying, channel assignment and polarity
* Protective caps and required waterproof connector system
* Jacket marking, labels and packaging
* Standard reel or reusable deployment reel requirement

A complete product drawing is confirmed before production to ensure the cable, connectors and optical-channel configuration match your system.

For outdoor waterproof use, please state the required ingress-protection level. The IP rating applies only to the selected complete connector system when it is correctly mated or closed; it does not apply to the cable alone.

Frequently Asked Questions

Is this a finished cable assembly?

Yes. Both expanded beam cable plugs are factory installed. You receive a complete pre-terminated tactical fiber cable assembly ready for deployment and connection.

Can I purchase the armored cable without connectors?

Yes. The same outdoor armored tactical fiber cable can be supplied as bulk cable for customers with their own expanded beam connector termination capability.

Can it be supplied on a reel?

Yes. A standard cable reel or reusable deployment reel is available for repeated field deployment and retrieval.

Can I order OS2 single-mode or OM3/OM4 multimode fiber?

Yes. OS2 single-mode and OM3/OM4 multimode configurations are available. Please provide the active equipment, transmission distance and required fiber mode when requesting a quotation.
