2.0mm 3.0mm Armored Fiber Optic Cable for CCTV
- Price：Negotiable Contact Us Email:sales@hhdfiber.com
2.0mm 3.0mm Armored Fiber Optic Cable for CCTV--Durable, High-Speed
Product Description:

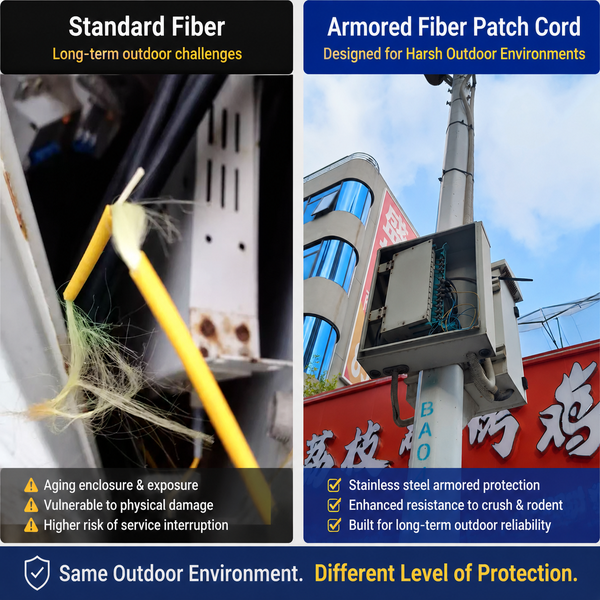

The 2.0mm 3.0mm armored fiber optic cable is specifically designed for high-demand surveillance systems, providing durable and stable signal transmission even in harsh environments. This fiber optic cable with a stainless steel armor for added protection, preventing rodent damage, mechanical harm, and external interference, ensuring stable HD video transmission for CCTV systems.
Product Applications:
CCTV Video Surveillance: Ensures clear and stable video signal transmission over long distances, ideal for use in shopping malls, parking lots, airports, warehouses, and other security monitoring locations.
Industrial Surveillance: In industrial environments, armored fiber prevents environmental damage to the fiber, providing strong protective capabilities.
Citywide Surveillance Systems: Suitable for municipal public safety monitoring networks, offering stable, long-range video transmission.
Smart Building Security: Used in modern smart buildings' video surveillance systems, ensuring efficient and stable signal transmission.
Specification
| Parameter | Specification |
| Cable Type | 3.0mm Armored Fiber Optic Cable for CCTV |
| Cable Count | single-core |
| Fiber Type | Single-Mode(OS2): 9/125 µm |
| Multi-Mode: 50/125 µm or 62.5/125 µm(OM1/OM2/OM3/OM4/OM5) | |
| Cable Diameter | Φ3.0 ± 0.1 mm |
| Jacket Material | LSZH ,RoHS-Compliant |
| Armor Type | Stainless Steel armor |
| Tensile Strength | ≥ 600 N (Short-Term) |
| ≥ 300 N (Long-Term) | |
| Crush Resistance | ≥ 3500 N/10 cm |
| Bending Radius | Dynamic: 20x Cable Diamete |
| Static: 10x Cable Diameter | |
| Operating Temperature | -40℃ ~ +85℃ |
| Jacket | RoHS-Compliant |
| Attenuation | Single-Mode:1310 nm @ 1550 nm |
| Multi-Mode: @ 850 nm @ 1300 nm | |
| Bandwidth | Multi-Mode: ≥ 200 MHz·km @ 850 |
| ≥ 500 MHz·km @ 1300 nm | |
| Connector Options | LC, SC, ST, FC, MTP/MPO (Customizable) |
| Cable Weight | 11kg/km |
|
Connector Insertion Loss (according to YDT 2617-2013) |
UPC(SM): Max. 0.35 dB |
| APC(SM): Max. 0.25 dB | |
|
Connector Return Loss (according to YDT 2617-2013) |
UPC(SM): Min. 50 dB |
| APC(SM): Min. 60 dB |
