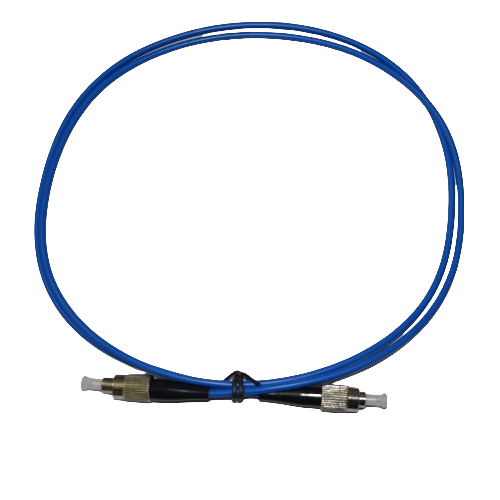

FC to FC ofc Fiber Patch Cord Cable for CCTV

OFC cable for CCTV

Armored Fiber Optic Cable, sometimes referred to spiral stainless steel armored fiber cable ,is optimized to protect your fiber cable, avoiding any and all unnecessary network downtime as a result of outside interferences. In this modern day and age, the consequences of light attenuation, which could occur throughout your fiber installation, are costly and time-consuming matters. Why not protect your cables from the start?

Armored cabling offers your network an added layer of protection. Hhd fiber offers armored fiber cables with two different types of armor: standard spiral steel armored and braiding armored cable. They are both flexible and light weight when it comes to installation.

Options:Armored fiber cable/ unarmored fiber cable

FC to FC Patch cord Specification

Fiber Type	Singlemode Fiber
Fiber Diameter	2.0mm/3,0mm
Connector	SC/LC/FC/ST  (Customizable)
Armor Material	Stainless Steel Armor
Applicable Environment	Indoor/Outdoor
Operating Temperature Range	- 40°C to 85°C
Applicable Standards	CCTV Video Surveillance, Industry Standards

Cable Parameters

Cable	CABLE OD.mm	Cable Weight	Maximum tensile		Bend Radius		L.P.
			S.T.	L.T.	Dyn.	Sta	N/100mm
2.0mm	Φ2.0±0.1	6.5	150	80	50	30	4500
3.0mm	Φ3.0±0.1	11	450	200	60	30	3500

FEATURES

*Good mechanical and environmental characteristics

*Soft, flexible, Stable, easy to splice

*Flame retardant characteristics meet the requirements of relevant standards

*Improve existing function based on customers’ various requirements

*Rodent-proof fiber cable

Options:

Fire Rated

Plenum Armored Fiber Cable

Riser Armored Fiber Cable

LSZH Armored Fiber Cable
TPU Armored Fiber Cable

Featuring Corning glass and good quality YOFC glass fibers

Outdoor Fiber Optic Cable

For outdoor applications, employ Hhd fiber Outdoor Fiber Optic Cable to achieve a clean and simple outdoor installation, free of harm caused by rodents or any further intrusions. With spiral stainles stell tube protection , you can rest assured, knowing that you have the proper shielding when harsher conditions arise. As a final note, these fiber cables are available in 1 to 144 strand options.

Whatever your need is, we have the solution.

Need Help Choosing the Right Fiber Optic Patch Cord?

If you're unsure which optical fiber patch cord best fits your needs, our team is here to help. Whether you require standard single mode options or a customized solution, reach out to us at sales@hhdfiber.com for expert guidance. We can walk you through available specifications and connector options—like LC, SC, ST, or FC—and help tailor a patch cord to match your exact requirements. Same-day shipping may be available for many configurations, so you’ll have the perfect cable for your project when you need it.

Custom Options Available for 3-7days Shipment

Alongside our standard single mode patch cords, we provide a tailored custom fiber optic patch cable service. Choose from a wide range of connector types—including LC, SC, ST, and FC—as well as various cable lengths and fiber specifications. and can  ship within 3-7days to meet your urgent project needs.

If you’re unsure about the best configuration for your application, reach out to our team for guidance—our expertise ensures you get exactly what you need, exactly when you need it.
