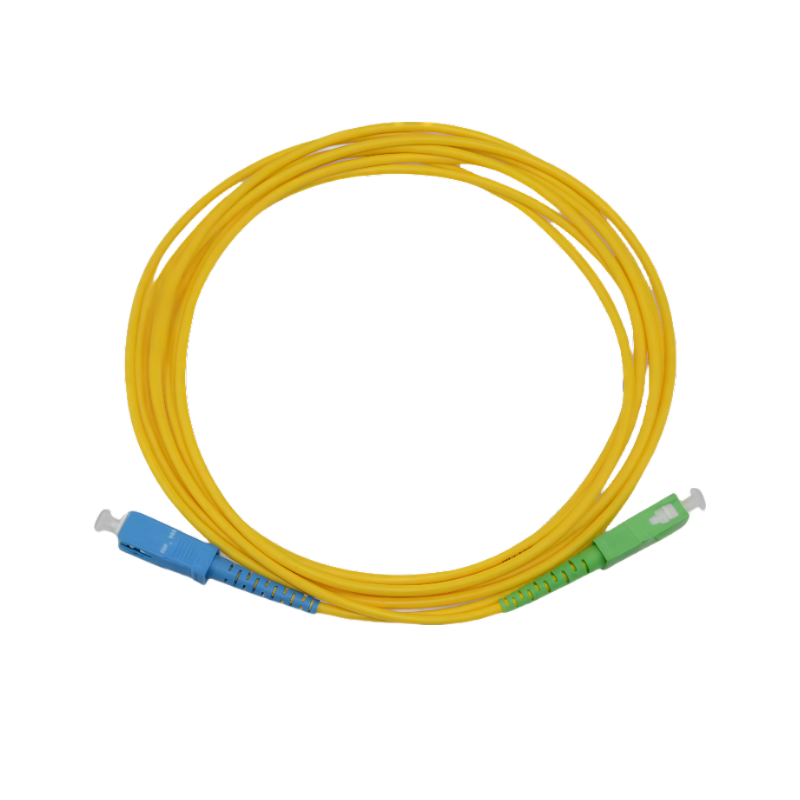

SC/APC-SC/PC single mode fiber optic patch cord cable

SC/APC-SC/PC single mode fiber optic patch cord cable

SC/APC to SC/PC Patch cord Specification

fiber optic  patch cord
Cable Jacket	LSZH
Fiber type	G652d
Fiber Attenuation	≤ 0.36dB/km λ=1310nm ; ≤0.22dB/km λ =1550nm
Connector Options	LC, SC, ST, FC (Customizable)
Fiber Termination End 1	LC、SC、FC  single mode, YDT 2617-2013
Fiber Termination End 2	LC、SC、FC single mode, YDT 2617-2013
Connector Insertion Loss (according to YDT 2617-2013)	UPC(SM): Max. 0.30 dB
	APC(SM): Max. 0.25 dB
Connector Return Loss (according to YDT 2617-2013)	UPC(SM): Min. 50 dB
	APC(SM): Min. 60 dB

Cable Parameters

Cable	CABLE OD.mm	Cable Weight	Maximum tensile		Bend Radius		L.P.
			S.T.	L.T.	Dyn.	Sta	N/100mm
2.0mm	Φ2.0±0.1	6.5	150	80	50	30	4500
3.0mm	Φ3.0±0.1	11	450	200	60	30	3500

FEATURES

*Good mechanical and environmental characteristics

*Soft, flexible, Stable, easy to splice

*Flame retardant characteristics meet the requirements of relevant standards

*Improve existing function based on customers’ various requirements

*Rodent-proof fiber cable

Need Help Choosing the Right Fiber Optic Patch Cord

If you're unsure which optical fiber patch cord best fits your needs, our team is here to help. Whether you require standard single mode options or a customized solution, reach out to us at sales@hhdfiber.com for expert guidance. We can walk you through available specifications and connector options—like LC, SC, ST, or FC—and help tailor a patch cord to match your exact requirements. Same-day shipping may be available for many configurations, so you’ll have the perfect cable for your project when you need it.

Custom Options Available for 3-7days Shipment

Alongside our standard single mode patch cords, we provide a tailored custom fiber optic patch cable service. Choose from a wide range of connector types—including LC, SC, ST, and FC—as well as various cable lengths and fiber specifications. and can  ship within 3-7days to meet your urgent project needs.

If you’re unsure about the best configuration for your application, reach out to our team for guidance—our expertise ensures you get exactly what you need, exactly when you need it.
