0.9mm Tight-Buffered Fiber for Pigtails, ODF and Terminal Boxes

HHD supplies 0.9mm tight-buffered fiber for pigtail production, ODF wiring, terminal boxes, FTTH/FTTx, CATV and fiber cable assembly. PVC, LSZH and Corning fiber options are available.

Applications of 0.9mm Tight-Buffered Fiber Cable

Pigtail production:LC/SC/FC/ST Fiber optic pigtail production

ODF:ODF internal wiring and splicing

Fiber terminal box and distribution box

FTTH, FTTx and PON access networks

CATV, FTTH TV service

Telecom network:Telecom access network termination

Data center:Data center patch panel and splice tray

LAN/WAN fiber network cabling

Patch cord assembly:Patch cord and fiber assembly production

Armored fiber cable assembly

0.9mm Tight-Buffered Fiber vs 2.0/3.0mm Simplex and Duplex Fiber Optic Cable Specifications

Parameter	0.9mm Tight-Buffered Fiber	2.0/3.0mm Simplex Cable	2.0/3.0mm Duplex Cable
Product Type	Tight-buffered fiber / 900um fiber	Simplex fiber optic cable	Duplex fiber optic cable /Zipcord cable
Fiber Count	1 fiber	1 fiber	2 fibers
Fiber Type	G.652.D / G.657.A1 / G.657.A2  / OM1-OM5	G.652.D / G.657.A1 / G.657.A2 / OM1-OM5	G.652.D / G.657.A1 / G.657.A2 / OM1-OM5
Mode	Singlemode / Multimode	Singlemode / Multimode	Singlemode / Multimode
Core/Cladding	9/125, 50/125, 62.5/125	9/125, 50/125, 62.5/125	9/125, 50/125, 62.5/125
Cable Diameter	0.9mm	2.0mm or 3.0mm	2.0mm x 2 legs / 3.0mm x 2 legs
Jacket Material	PVC / LSZH	PVC / LSZH	PVC / LSZH
Jacket Color	12 colors / Yellow / Aqua / Orange etc.	Yellow, Aqua, Orange, Violet, customized	Yellow, Aqua, Orange,  Violet, customized
Strength Member		aramid yarn	aramid yarn
Fiber Brand Option	Standard fiber,Corning fiber available upon request	Standard fiber, Corning fiber option	Standard fiber, Corning fiber option
Attenuation	1310/1550nm or 850/1300nm	1310/1550nm or 850/1300nm	1310/1550nm or 850/1300nm
Operating Temperature	-20°C to +70°C	-20°C to +70°C	-20°C to +70°C
Application	Pigtail, ODF, terminal box, FTTH assembly	Patch cord, pigtail, indoor cabling	Duplex patch cord, patch panel, equipment link
Packing	Reel / carton, km per reel	Reel / drum / carton	Reel / drum / carton
Compliance	RoH	RoHS	RoHS

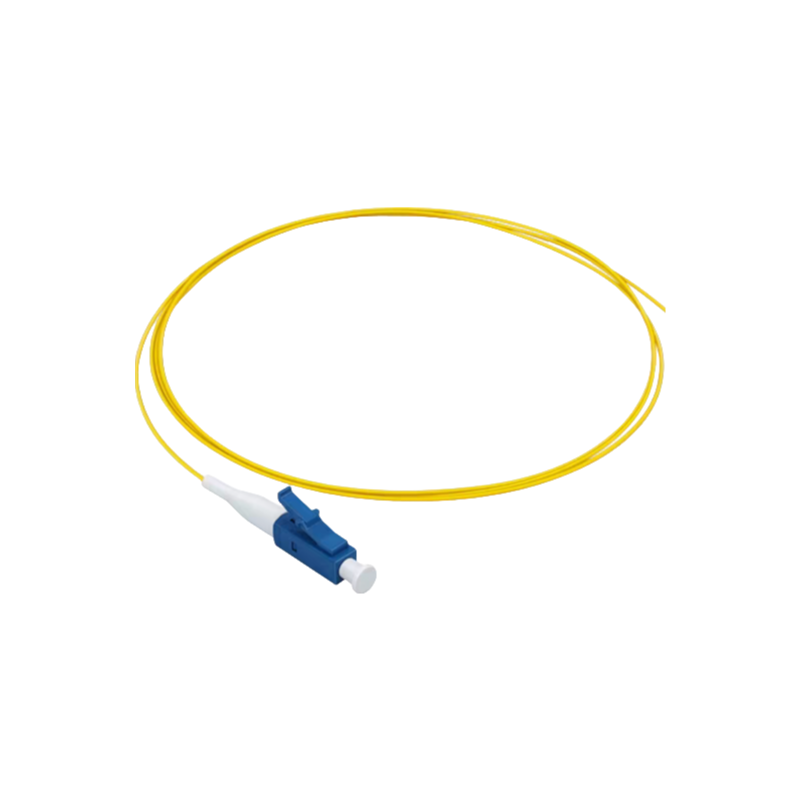

LC UPC singlemode 0.9mm fiber optic pigtail made from 900um tight-buffered fiber

Made with 900um tight-buffered fiber for ODF wiring, terminal boxes and fusion splicing applications.

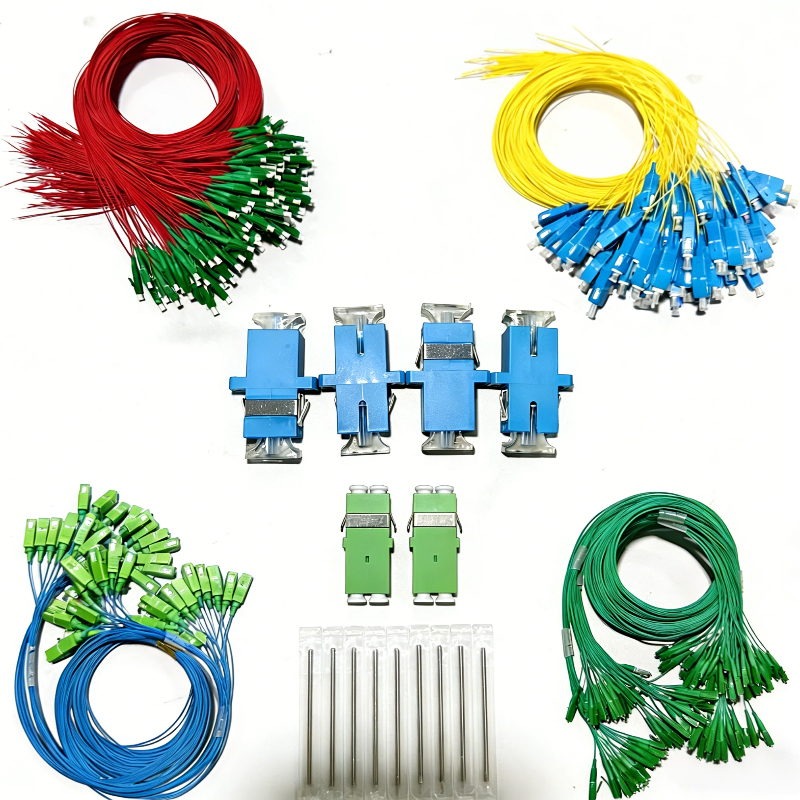

0.9mm Fiber Optic Pigtail Sets with Adapters and Splice Sleeves

0.9mm tight-buffered fiber can be processed into LC, SC, FC and ST pigtails, with 12-color options and 60mm splice protection sleeves for ODF and terminal box assembly.
