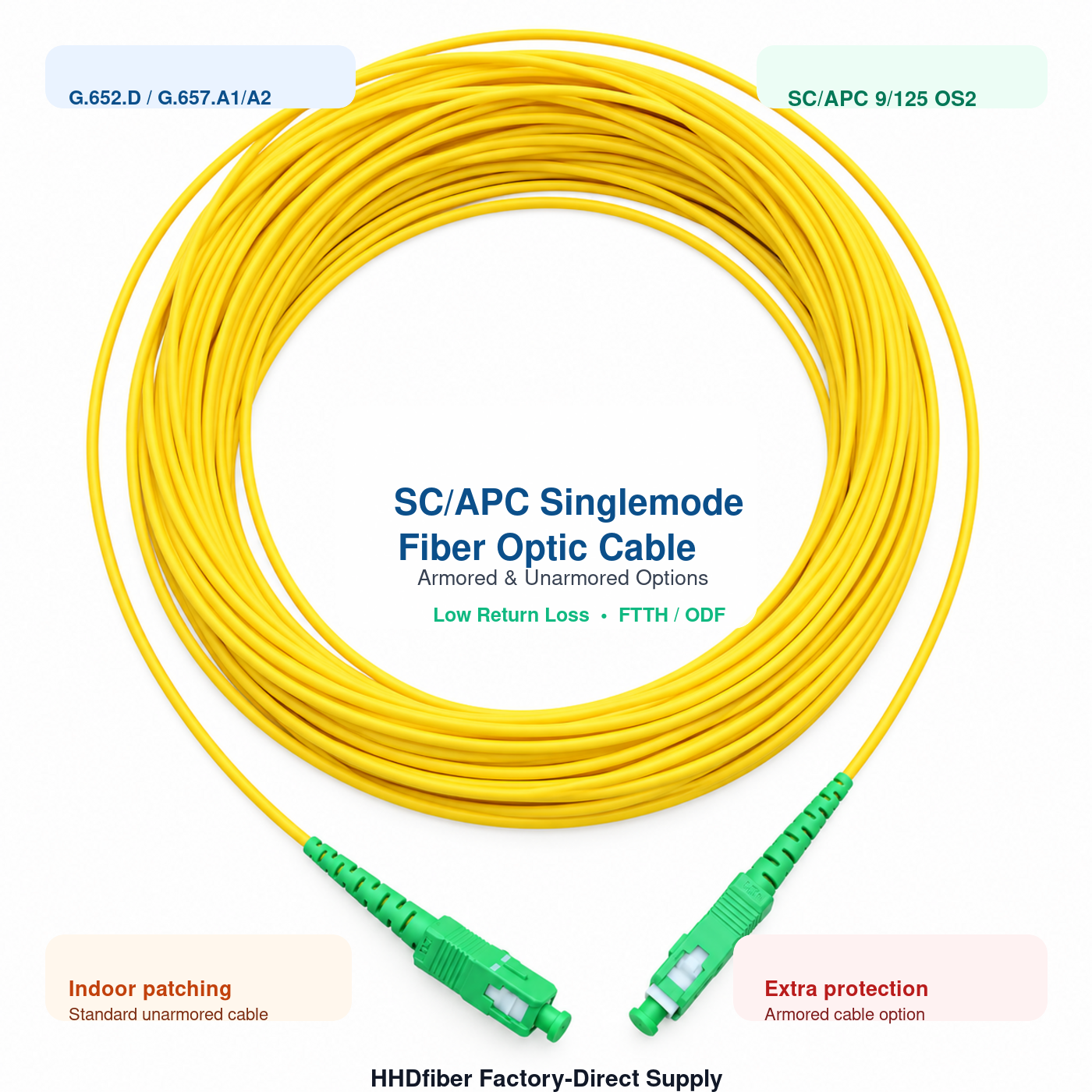

SC/APC Singlemode Fiber Optic Patch Cord Jumper

HHD supplies SC/APC singlemode fiber optic cables for FTTH, ODF, fiber distribution boxes, telecom equipment and indoor optical network connections. This cable can be supplied in both unarmored and armored versions, depending on the installation environment and protection requirements. G.652.D and G.657.A1/A2 fiber options are available for standard routing or tighter bend applications.

Product Overview

The SC/APC singlemode fiber optic cable is designed for low-reflection optical connections in FTTH networks, optical distribution frames, terminal boxes, fiber patch panels and communication equipment. The APC polished connector helps reduce return loss, making it suitable for applications where stable optical performance is required.

For normal indoor cabling, the unarmored version offers a lightweight and flexible solution. For areas where the cable may face frequent handling, bending, pulling or possible mechanical damage, the armored version provides extra protection with a stainless steel armored structure while maintaining good flexibility.

Key Features

SC/APC connector for low return loss optical connection
Singlemode 9/125 fiber for FTTH, telecom and data transmission
Armored and unarmored versions available
G.652.D, G.657.A1 and G.657.A2 fiber options
PVC, LSZH, OFNR or custom jacket options
Simplex or duplex cable structure available
Cable diameter options: 2.0mm, 3.0mm, or customized
Factory-direct supply for repeat-volume patch cord orders
100% tested for insertion loss and return loss before shipment

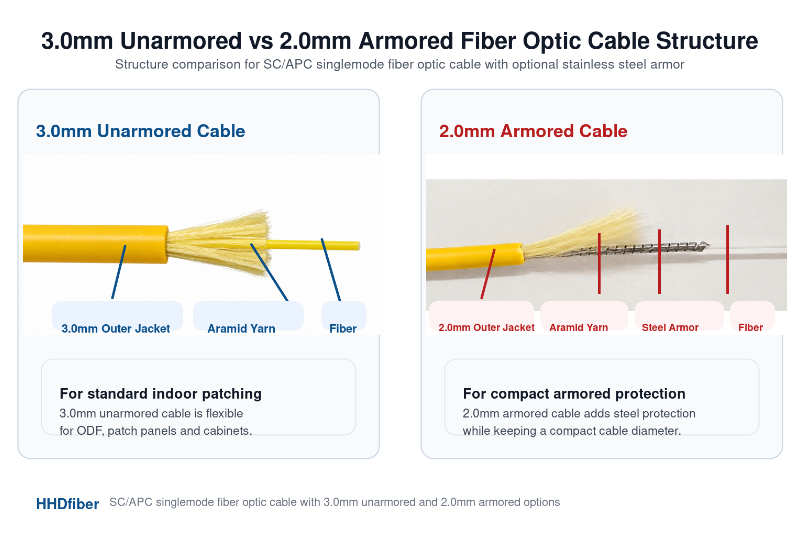

Armored and Unarmored Options
The unarmored SC/APC singlemode fiber optic cable is suitable for standard indoor patching, ODF wiring, FTTH terminal boxes and equipment connections where the cable is installed in a protected environment.
The armored SC/APC fiber optic cable is recommended for applications that need stronger mechanical protection, such as repeated handling, exposed indoor routing, industrial cabinets, telecom rooms, rental equipment, temporary installation and areas where standard patch cords may be easily crushed or damaged.

Applications

FTTH and FTTx access networks
Optical distribution frames
Fiber terminal boxes
Fiber patch panels
Telecom equipment connection
CATV optical networks
Data communication rooms
Indoor equipment interconnection
Armored patch cord applications

Repeated-use fiber cable assemblies

Available Specifications of SC/APC Singlemode Fiber Optic Patch Cord

Connector	SC UPC	SC APC
Insertion Loss	≤0.3	≤0.25
Return Loss	>or=50dB	>or=60dB
Cable Diameter(mm)	0.9mm,2.0mm,3.0mm
Durability	(1000matings)<0.3dB
Interchanability	<0.3dB
Operating Temperature	-40C~+80C
Storage Temperature	-40C~+80C
Fible Type	Tight-Buffered fiber
Cable Jacket	LSZH
Fible Count	Single core fiber

Parameter	Specification
Cable Type	3.0mm fiber optic cable	3.0mm armored fiber cable
Cable Count	single-core/1core	single-core/1core
Fiber Type	Single-Mode: 9/125 µm G652D/G657A1/G657A2	Single-Mode: 9/125 µm G652D/G657A1/G657A2
	Multi-Mode: 50/125 µm or 62.5/125 µm(OM1/OM2/OM3/OM4/OM5)	Multi-Mode: 50/125 µm or 62.5/125 µm(OM1/OM2/OM3/OM4/OM5)
Cable Diameter	Φ3.0mm	Φ3.0mm
Jacket Material	PVC, LSZH, OFNR, OFNP	PVC, LSZH, OFNR, OFNP
Jacket Color	Yellow or customized
Operating Temperature	-40°C to +85°C	-40°C to +85°C
Storage Temperature	-40°C to +85°C	-40°C to +85°C
Bare Fiber Options	YOFC/Corning/other	YOFC/Corning/other
Attenuation	Single-Mode:1310 nm @ 1550 nm	Single-Mode:1310 nm @ 1550 nm
	Multi-Mode: @ 850 nm @ 1300 nm，Multi-Mode: @ 850 nm @ 1300 nm	Multi-Mode: @ 850 nm @ 1300 nm，Multi-Mode: @ 850 nm @ 1300 nm
Cable Length	Customized

HHDfiber provides factory-direct SC/APC Singlemode Fiber Optic Patch Cord Jumper with flexible structure options, stable repeat supply and customized cable assemblies. Customers can choose standard unarmored patch cords for indoor wiring or armored SC/APC cables for stronger protection in demanding installation environments.

If you do not need a connectorized patch cord, you may also choose our 3.0mm singlemode simplex 1-core tight buffer indoor armored fiber cable for pigtail assembly, ODF wiring, PLC splitter output cables and protected indoor fiber routing.
