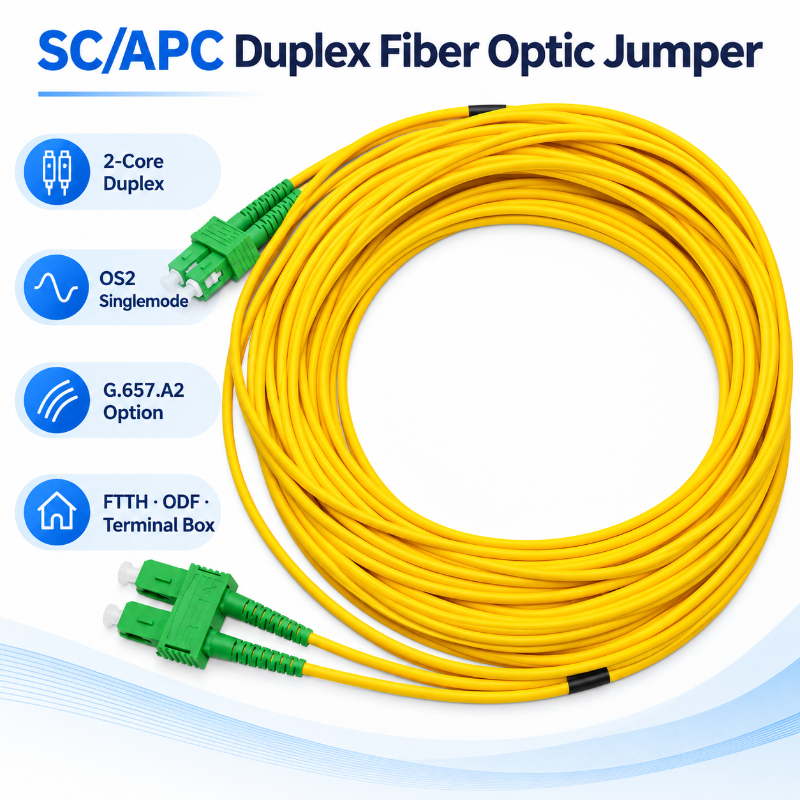

SC/APC Fiber Optic Jumper Cable, Patch Lead and Fiber Flylead

HHD supplies SC/APC fiber optic jumper cables, also called fiber patch leads, fiber flyleads, fiber optic patch cords or fiber patch cables in different markets, for FTTH, ODF, terminal boxes, CATV, GPON and indoor optical equipment connections. This SC/APC to SC/APC simplex 3.0mm singlemode cable is available in both armored and unarmored structures, with OS2 G.657.A2 bend-insensitive fiber for compact routing and stable optical performance.

Key Features and Benefits

Armored and Unarmored Options

For protected indoor routing, the armored version uses a  SUS204/304 spiral stainless steel armor structure under the outer jacket to improve resistance against bending, crushing, accidental stepping and rodent damage. For standard cabinet, ODF and equipment connections, the unarmored version provides a lighter and more flexible option for daily patching work.

G.657.A2 Bend-Insensitive Singlemode Fiber

The G.657.A2 fiber option is suitable for tight routing areas such as FTTH boxes, wall-mounted enclosures, ODF trays and high-density patch panels. It helps reduce bend-related signal loss in compact spaces while remaining compatible with common G.652.D singlemode network infrastructure.

SC/APC Connectors for Low Reflection Links

The green SC/APC connectors are designed for applications that require low back reflection, such as GPON, CATV, FTTH and WDM optical links. Each cable can be supplied with factory-polished ceramic ferrules and tested for insertion loss and return loss before shipment.
Insertion Loss: ≤ 0.3 dB, typical < 0.2 dB
Return Loss: ≥ 60 dB for APC polish
Connector Type: SC/APC to SC/APC duplex
Fiber Type: OS2 9/125 singlemode, G.652.D / G.657.A1 / G.657.A2 options

PVC or LSZH Jacket Options

PVC and LSZH jacket materials are available for different installation requirements. LSZH is commonly selected for indoor cabling areas where low smoke and halogen-free materials are preferred, while PVC is often used for standard equipment rooms, cabinets and patching environments.

Product Specifications

Technical Parameter	Armored Fiber Patch Lead	Unarmored Fiber Patch Cable
Connector Type	SC/APC to SC/APC Simplex	SC/APC to SC/APC Simplex
Quality Grade	Telecom Grade / Carrier Grade	Telecom Grade / Carrier Grade
Fiber Type	OS2 Single Mode 9/125(G.657.A2)	OS2 Single Mode 9/125(G.657.A2)
Cable Outer Diameter	3.0mm (Custom 2.0mm / 0.9mm available)	3.0mm (Custom 2.0mm / 0.9mm available)
Armor Structure	SUS204/304 Spiral Stainless Steel Armor	Non-armored (Aramid Yarn Strength Member)
Mechanical Properties	Rodent Resistant & Heavy Crush Resistant	Standard Flexible Indoor Routing
Jacket Material	LSZH / PVC	LSZH / PVC
Operating Temp.	-40C to +80C	-40C to +80C

Connector	SC UPC	SC APC
Insertion Loss	≤0.3	≤0.25
Return Loss	>or=50dB	>or=60dB
Cable Diameter(mm)	0.9mm,2.0mm,3.0mm
Durability	(1000matings)<0.3dB
Interchanability	<0.3dB
Operating Temperature	-40C~+80C
Storage Temperature	-40C~+80C
Fible Type	Tight-Buffered fiber
Cable Jacket	LSZH
Fible Count	Single core fiber

Typical Applications

FTTH and FTTx subscriber connections
ODF and optical distribution frame patching
Fiber terminal boxes and wall-mounted enclosures
GPON, CATV and WDM optical links
Telecom equipment rooms and indoor cabinets
Security systems, parking lots, apartments and laboratory fiber links
