Fiber Optic Splice Sleeve

  • Fiber Optic Splice Protection Sleeve 40mm

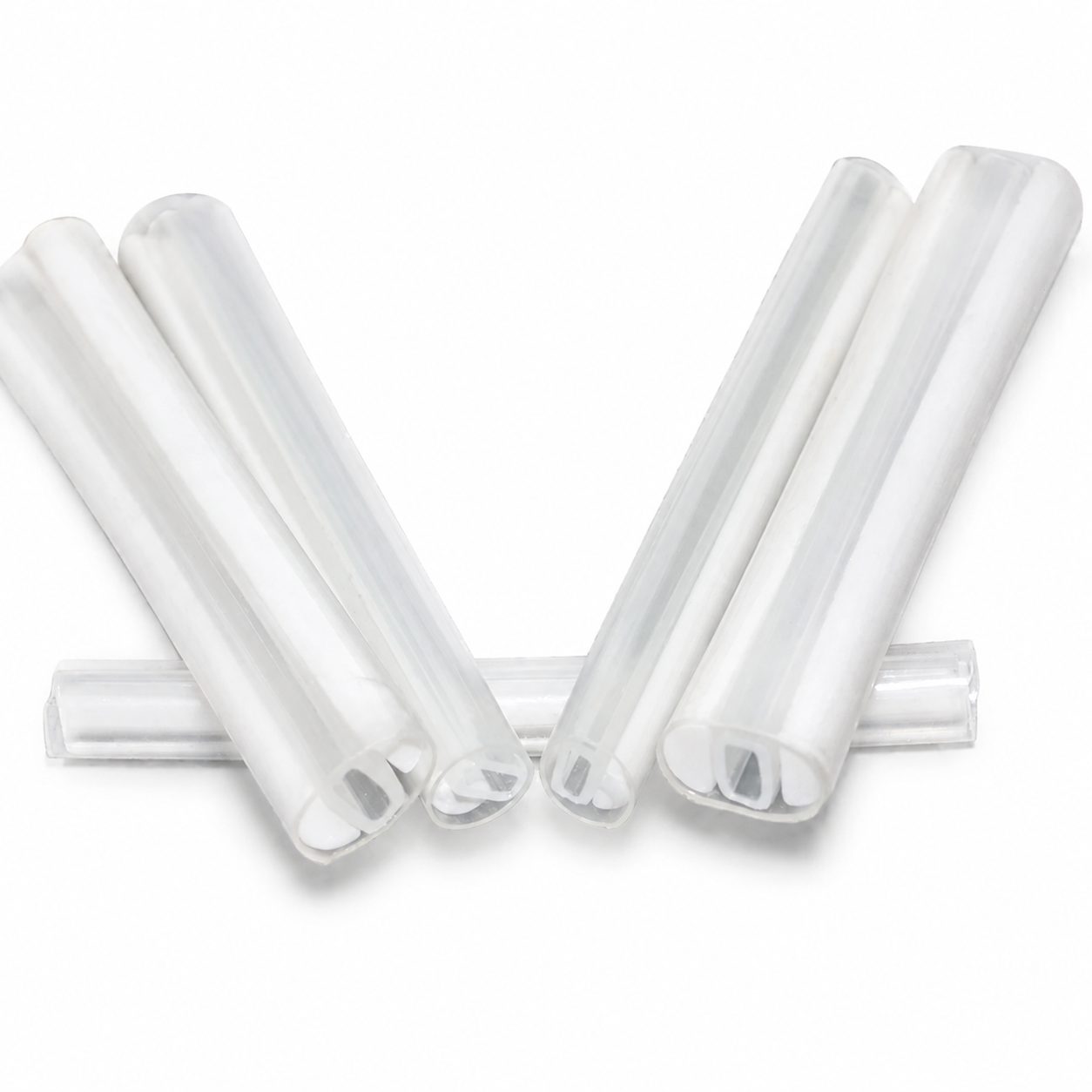

Fiber Optic Splice Protection Sleeve 40mm

Fiber Optic Splice Protection Sleeve 40mm


Specifications Casing length Hot melt pipe Needle package
Size
after contraction
(mm)
length(mm) id(mm) length(mm) DIA(mm) length(mm)
1.5*60mm 2.9-3.08 60±2 1.1 60±2 1.5±0.05 55±1 100pcs/bag
1.5*50mm 2.9-3.08 50±2 1.1 50±2 1.5±0.05 45±1 100pcs/bag
1.5*45mm 2.9-3.08 45±2 1.1 45±2 1.5±0.05 40±1 100pcs/bag
1.5*40mm 2.9-3.08 40±2 1.1 40±2 1.5±0.05 35±1 100pcs/bag
1.5*25mm 2.9-3.08 25±2 1.1 25±2 1.5±0.05 21±1 100pcs/bag
1.2*60mm 2.6-2.77 60±2 1.1 60±2 1.2±0.05 55±1 100pcs/bag
1.2*45mm 2.6-2.77 45±2 1.1 45±2 1.2±0.05 40±1 100pcs/bag
1.2*40mm 2.6-2.77 40±2 1.1 40±2 1.2±0.05 35±1 100pcs/bag
1.2*30mm 2.6-2.77 30±2 1.1 30±2 1.2±0.05 26±1 100pcs/bag
1.2*25mm 2.6-2.77 25±2 1.1 25±2 1.2±0.05 21±1 100pcs/bag
1.0*60mm 2.2-2.37 60±2 1.1 60±2 1.0±0.05 55±1 100pcs/bag
1.0*45mm 2.2-2.37 45±2 1.1 45±2 1.0±0.05 40±1 100pcs/bag
1.0*40mm 2.2-2.37 40±2 1.1 40±2 1.0±0.05 35±1 100pcs/bag
