Fiber Optic Splice Sleeve

  • Heat Shrink Fiber Optic Fusion Splice Protection Sleeve 60mm

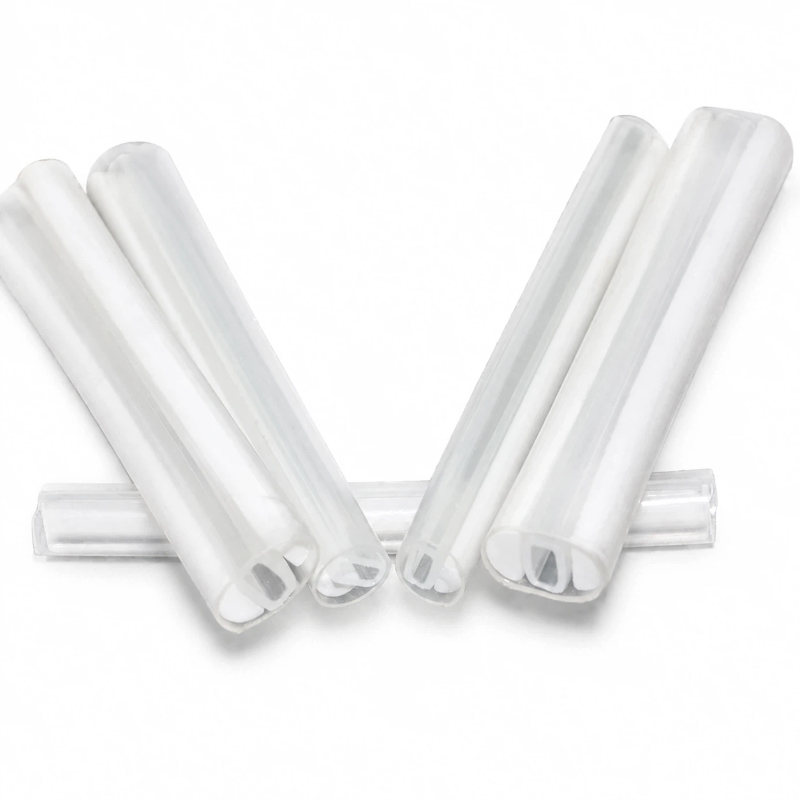

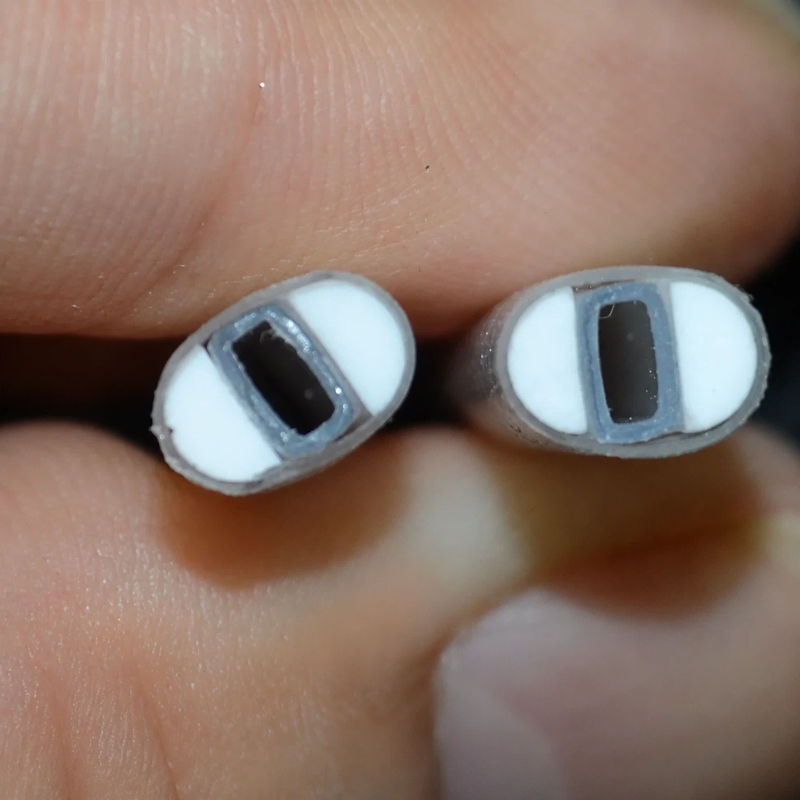

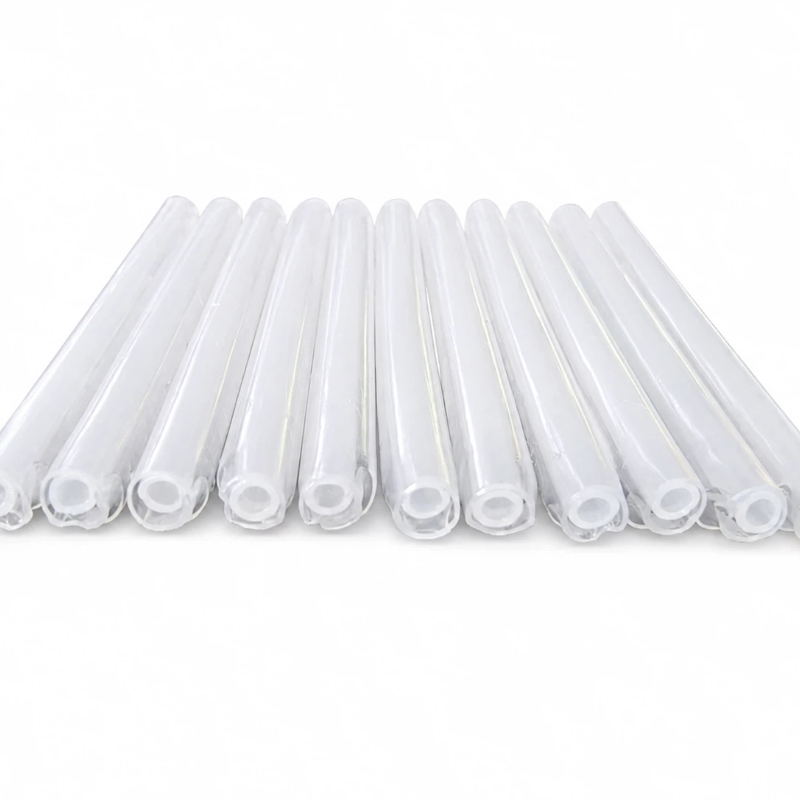

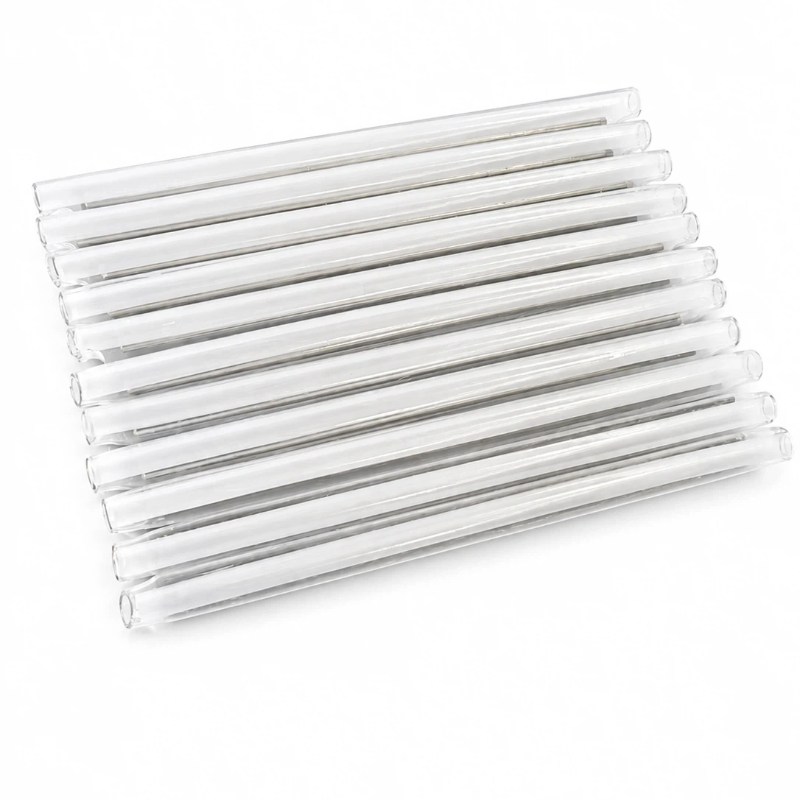

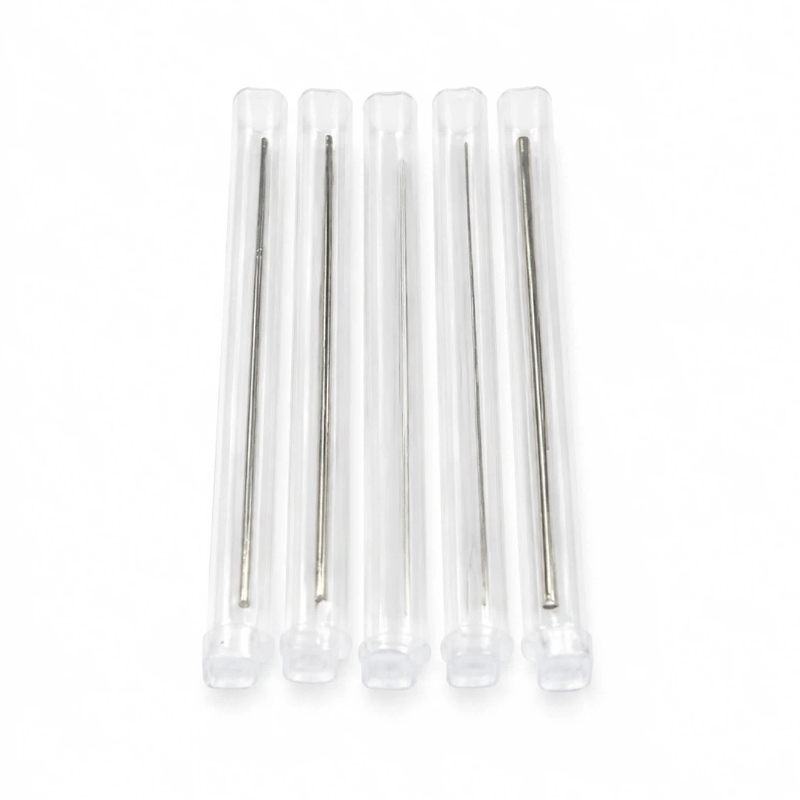

Heat Shrink Fiber Optic Fusion Splice Protection Sleeve 60mm

Heat Shrink Fiber Optic Fusion Splice Protection Sleeve 60mm


Specifications Casing length Hot melt pipe Needle package
Size
after contraction
(mm)
length(mm) id(mm) length(mm) DIA(mm) length(mm)
1.5*60mm 2.9-3.08 60±2 1.1 60±2 1.5±0.05 55±1 100pcs/bag
1.5*50mm 2.9-3.08 50±2 1.1 50±2 1.5±0.05 45±1 100pcs/bag
1.5*45mm 2.9-3.08 45±2 1.1 45±2 1.5±0.05 40±1 100pcs/bag
1.5*40mm 2.9-3.08 40±2 1.1 40±2 1.5±0.05 35±1 100pcs/bag
1.5*25mm 2.9-3.08 25±2 1.1 25±2 1.5±0.05 21±1 100pcs/bag
1.2*60mm 2.6-2.77 60±2 1.1 60±2 1.2±0.05 55±1 100pcs/bag
1.2*45mm 2.6-2.77 45±2 1.1 45±2 1.2±0.05 40±1 100pcs/bag
1.2*40mm 2.6-2.77 40±2 1.1 40±2 1.2±0.05 35±1 100pcs/bag
1.2*30mm 2.6-2.77 30±2 1.1 30±2 1.2±0.05 26±1 100pcs/bag
1.2*25mm 2.6-2.77 25±2 1.1 25±2 1.2±0.05 21±1 100pcs/bag
1.0*60mm 2.2-2.37 60±2 1.1 60±2 1.0±0.05 55±1 100pcs/bag
