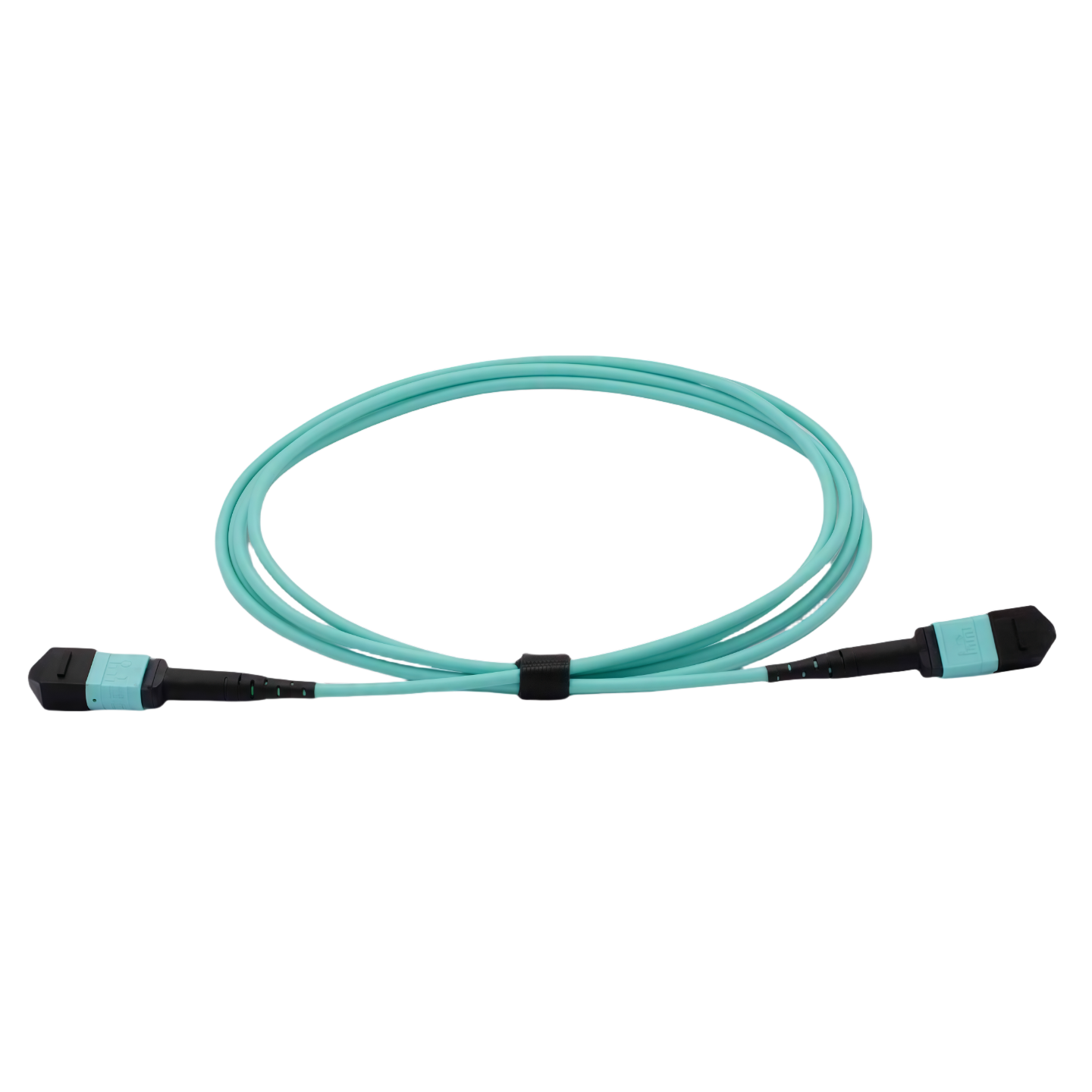

MPO MTP Trunk Cable

MPO to MPO Fiber Optic Patch Cable Cord OM3

Price：Negotiable

MPO to MPO Fiber Optic Patch Cable Cord OM3

1.MPO connectors meet standards such as IEC- 61754-7and GR-1435.
2.Quick plug-and-play design enhances constructionefficiency.
3.High cabling density allows for 12 to 144 fiber connections,optimizinginstallation space.
4.Excllent compatibility,suitable fordiverse application scenarios.
5.Minimal loss.

Applications

1.SAN(Storage Area Network),Data Center,Local Area Network
2.Parallel Data Exchange Applications amongPCs
3.High-Speed Network Transmission:10G, 40G,100G,and 400G
4.Fiber Optic Patch Panel Systems

SpecificationsM

MPO to MPO OM3 Multimode fiber patch cables & singlemode

Item	Multimode		Single-mode
	(PC)		(APC)
Insertion Loss(IL)	Standard Loss	Reduced Loss	Standard Loss	Reduced Loss
	≤0.5dB	≤0.3dB	≤0.7dB	≤0.35dB
Return Loss Return Loss(RL)	≥25dB		≥60dB
Operating Temperature(℃)	-40~+85
Testing Wavelength(NM)	850/1300		1310/1550
