4 Channel Expanded Beam Flange Mount Fiber Optic Cable Assembly

This pre-terminated 4 channel expanded beam flange mount fiber optic cable assembly provides a rugged fiber interface between field equipment, outdoor cabinets, vehicle panels and tactical fiber cable runs.

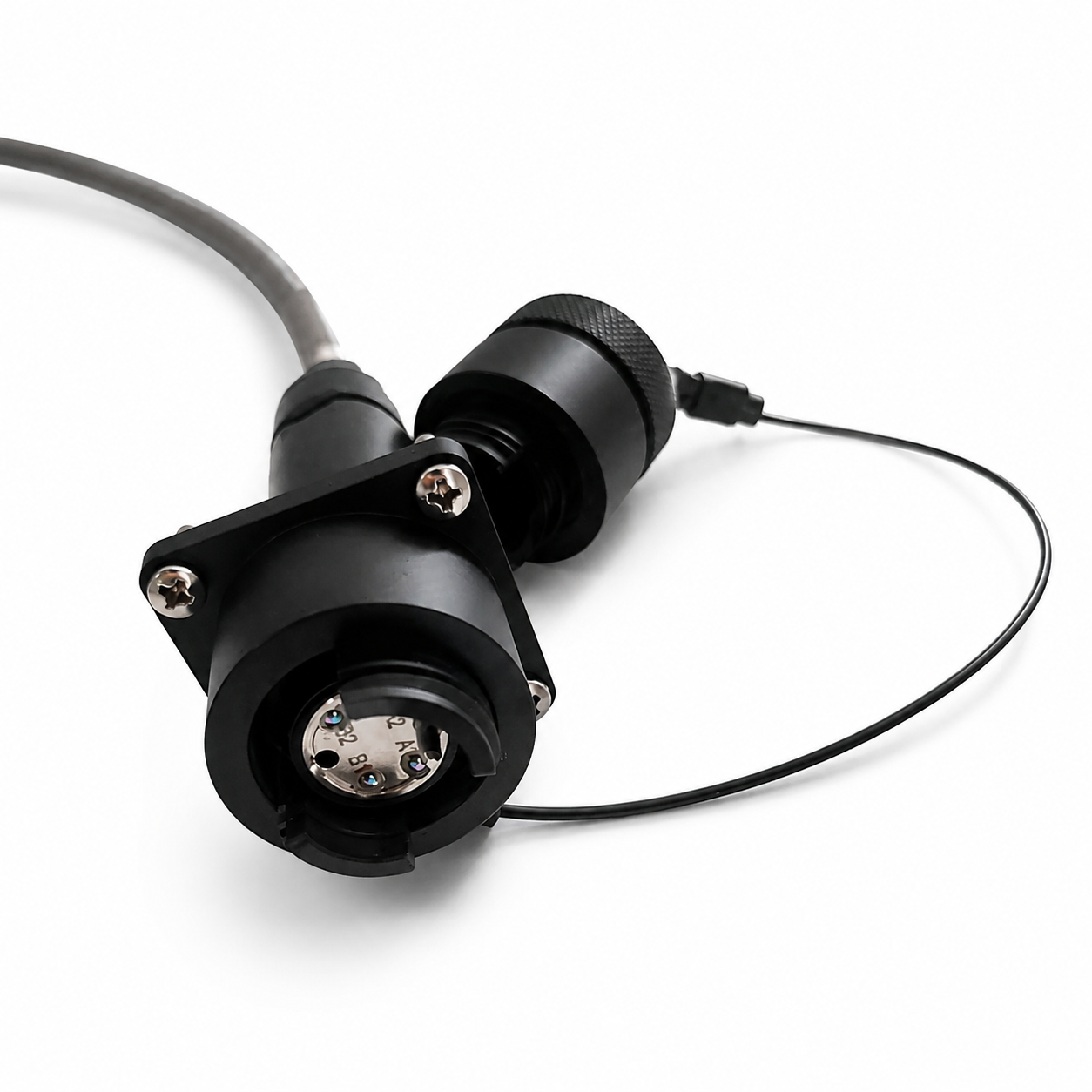

The product combines a 4-channel expanded beam flange-mount bulkhead connector with a factory-terminated 4-fiber TPU armored cable. The panel-side connector is designed to be fixed to an enclosure, cabinet or equipment panel.

Flange Mount, Bulkhead and Panel Mount Fiber Interface

Customers may use different names for this product. This page covers the following common terms:
* 4 Channel Flange Mount Bulkhead Connector
* 4 Channel Expanded Beam Flange Mount Connector
* 4 Channel Panel Mount Fiber Optic Connector
* Expanded Beam Bulkhead Cable Assembly
* Flange Mount to LC Fiber Cable Assembly
* Flange Mount to SC Fiber Cable Assembly
* Jam Nut Bulkhead Connector
* Tactical Fiber Cable Bulkhead Interface

A flange-mount connector is generally selected when the expanded beam interface must be secured with screws to an equipment panel or enclosure. A jam-nut bulkhead connector is another fixed-panel option and can be specified when the mounting method requires it.

Typical Applications

* Outdoor communication cabinets and telecom equipment
* Vehicle, shelter and command-center panel interfaces
* Broadcast equipment racks and temporary production systems
* Military and training communication systems
* CCTV control cabinets and perimeter-security networks
* Industrial equipment, mining sites and harsh-environment enclosures
* Remote radio, FTTA and field-network distribution points

Cable and Assembly Specifications

Parameter	Specification
Cable Type	Outdoor Armored Fiber Optic Cable 4 Core
Cable Count	4 Core
Fiber Type	Single-Mode(OS2): 9/125 µm
	Multi-Mode: 50/125 µm or 62.5/125 µm(OM1/OM2/OM3/OM4/OM5)
Cable Diameter	Φ4.5 ± 0.2 mm，6.0 ± 0.25 mm
Jacket Material	TPU, RoHS-Compliant
Armor Type	Stainless Steel armor
Tensile Strength	≥ 800 N (Short-Term)
	≥ 500 N (Long-Term)
Crush Resistance	≥ 3000 N/10 cm
Bending Radius	Dynamic: 20x Cable Diamete
	Static: 10x Cable Diameter
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
TPU Jacket	Rodentproof,UV-Proof
Attenuation	Single-Mode:1310 nm @ 1550 nm
	Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth	Multi-Mode: ≥ 200 MHz·km @ 850
	≥ 500 MHz·km @ 1300 nm
Connector Options	LC, SC, ST, FC (Customizable)
Cable Weight	27.5kg/km

Waterproof Connector Note

The ingress-protection level belongs to the selected completed connector system. When an outdoor waterproof interface is required, specify the required IP-rated flange-mount or bulkhead connector and its correct mating condition. Do not describe the cable alone as IP-rated.

FAQ

Is this product a complete pre-terminated assembly?

Yes. The flange-mount or bulkhead connector, armored fiber cable and selected cable-end connector or breakout are supplied as one finished product.

What is the difference between a flange mount and a plug?

The flange-mount connector is fixed to a panel, cabinet or enclosure. The plug is cable-mounted and is used to mate with the panel interface or another cable plug.

Can this product use a reel?

Yes. Long tactical cable assemblies can be supplied on a reusable deployment reel.
