Ruggedized 4-Core ODC to LC Armored Fiber Optic Patch Cord & Fibre Patch Lead

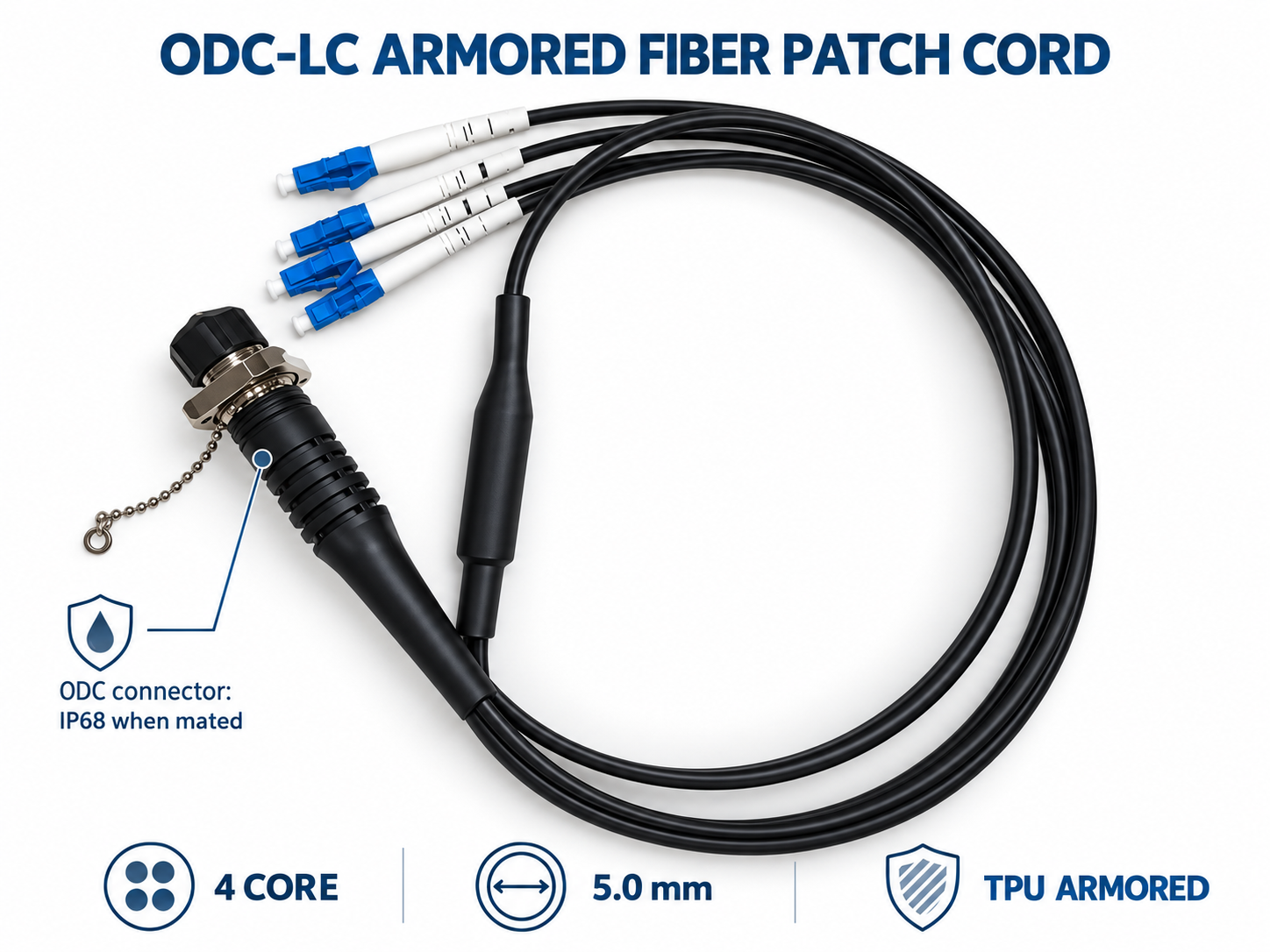

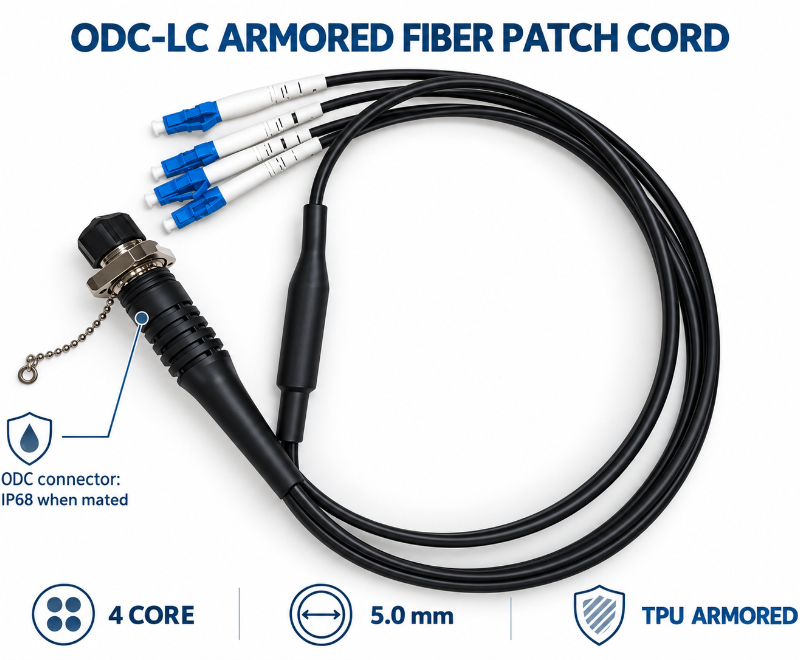

HHD Fiber manufactures high-durability 4-core ODC to LC armored fiber optic patch cords and breakout cables engineered for harsh outdoor environments and broadcast networks. Built as a heavy-duty fibre optic patch lead featuring an IP68-rated waterproof ODC-2/4 connector on one end and LC fanout breakouts on the other, each assembly incorporates a flexible SUS204/304 spiral stainless steel armor tube beneath a UV-resistant 5.0 mm TPU jacket.
Also widely referred to as an armored patch cable or armoured fibre optic patch lead in international markets, this robust assembly delivers superior crush resistance, anti-rodent protection, and stable optical performance. Connector configurations and cable lengths can be fully customized for your specific installation. (Note: The ODC connector’s IP68 waterproof rating applies only when mated and does not extend to the LC breakout end.)

ODC to LC breakout cable Parameter

Parameter	Test standard / condition	Specification
Technology		Full ceramic ferrule and sleeve
Housing material		Nickel-plated brass
Mechanical performance	ODC-4 plug	≤ 800 N tensile load; ≤ 30 N static side load
Mechanical performance	ODC-4 socket	≤ 30 N static side load
Installation torque force		Min. 1 Nm; Max. 2 Nm
Operating temperature	IEC 61300-2-22	-40 °C to +85 °C
Mating durability		1,000 cycles
Ingress protection (mated)	IEC 60529	IP68
Salt mist	IEC 61300-2-26	Passed, 30 days
Vibration	IEC 61300-2-1	Passed, 10 Hz-500 Hz / 10 g
Shock	IEC 61300-2-9	Passed, 100 g

Optical parameter	Fiber type	Specification
Insertion loss IEC 61300-3-34	Singlemode	Typical: ≤ 0.20 dB; 97%: ≤ 0.45 dB
	Multimode	Typical: ≤ 0.20 dB; 97%: ≤ 0.50 dB
Return loss	Singlemode	≥ 50 dB

Global Naming & Regional Application Standards

HHD Fiber’s 4-core ODC to LC cable assembly is supplied to telecom operators, system integrators, and broadcast engineers worldwide under local industry designations:
North America (US & Canada): Frequently specified as an ODC to LC armored fiber optic patch cord or FTTA RRU optical jumper for 4G/5G base transceiver stations (BTS) and remote radio heads (RRH)
United Kingdom, Europe & Australia: Commonly ordered as an IP68 armoured fibre optic patch lead or fibre flylead for ruggedized outdoor broadcast vans, temporary venue events, and harsh environment communications.
Middle East, Latin America & Asia-Pacific: Deployed as a heavy-duty outdoor armored patch cable for wireless infrastructure, CCTV field links, and industrial network backbones.

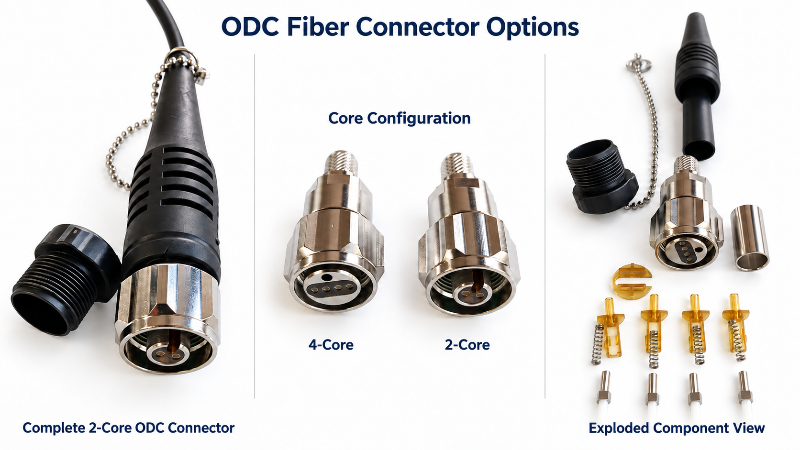

ODC to LC armored fiber optic patch cord 2-core 4-core

ODC fiber connector options showing a complete 2-core connector, 2-core and 4-core configurations, and exploded connector components.

Explore our full range of Armored Fiber Optic Patch Cords for indoor and outdoor networks

Heavy-duty 4-Core Armored Tactical Fiber Cable  for ODC to LC Breakout Cable
