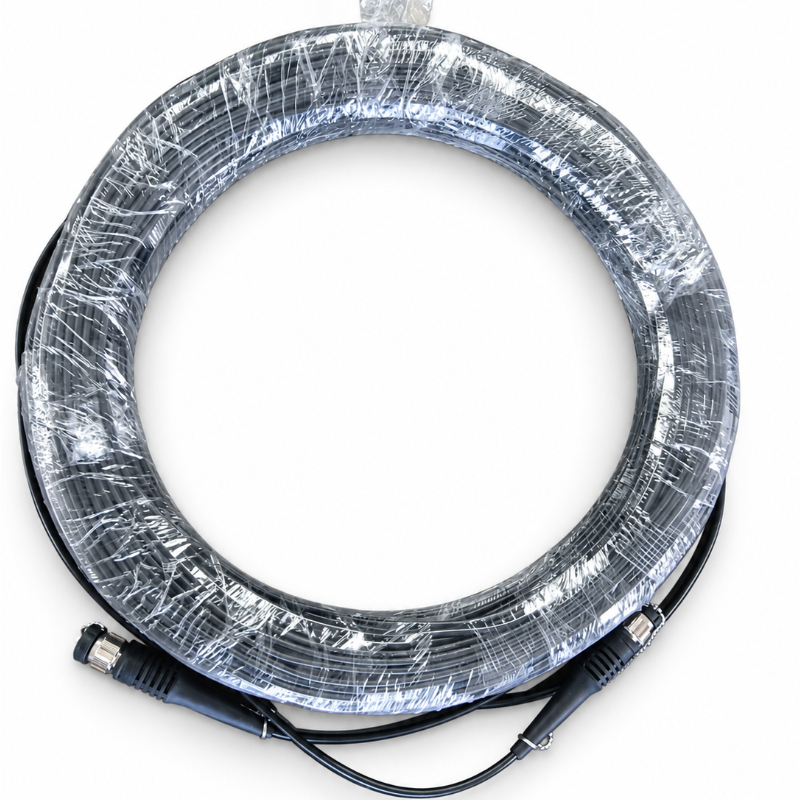

2-Core ODC Plug-to-Plug Fiber Cable Assembly | 5.0mm TPU Armored FTTA Jumper

This 2-core ODC plug-to-plug fiber cable assembly connects ODC interfaces at both ends for outdoor fiber links. It combines ODC-2 plugs with a 5.0mm TPU armored fiber cable for FTTA and other field applications.

5.0mm TPU Armored Cable for Outdoor Use

2-core / 2-fiber ODC cable assembly
ODC plug-to-plug configuration
5.0mm TPU armored fiber cable
Cable length and fiber type can be specified for the project
Custom connector and cable arrangements available

FTTA ODC Jumper for Outdoor Links

This assembly can be used for FTTA and RRU-to-BBU fiber connections. Related product terms include ODC-2 fiber cable, ODC plug-to-ODC plug patch cord, ODC fiber optic jumper, and ruggedized outdoor fiber optic patch lead.

ODC Connector Protection

The ODC connectors are rated IP68 when mated. Confirm the complete cable route and connection requirements for the intended outdoor environment.Request a Custom ODC Cable Assembly

Contact HHD Fiber with your required cable length, fiber type, and project details. We can review the ODC plug-to-plug cable assembly configuration for your application.

Technical Specifications for 2-Core ODC Plug-to-Plug Fiber Cable Assembly

Parameter	Test standard / condition	Specification
Technology		Full ceramic ferrule and sleeve
Housing material		Nickel-plated brass
Mechanical performance	ODC-2 plug	≤ 800 N tensile load; ≤ 30 N static side load
Mechanical performance	ODC-2 socket	≤ 30 N static side load
Installation torque force		Min. 1 Nm; Max. 2 Nm
Operating temperature	IEC 61300-2-22	-40 °C to +85 °C
Mating durability		1,000 cycles
Ingress protection (mated)	IEC 60529	IP68
Salt mist	IEC 61300-2-26	Passed, 30 days
Vibration	IEC 61300-2-1	Passed, 10 Hz-500 Hz / 10 g
Shock	IEC 61300-2-9	Passed, 100 g

Optical parameter	Fiber type	Specification
Insertion loss IEC 61300-3-34	Singlemode	Typical: ≤ 0.20 dB; 97%: ≤ 0.45 dB
	Multimode	Typical: ≤ 0.20 dB; 97%: ≤ 0.50 dB
Return loss	Singlemode	≥ 50 dB

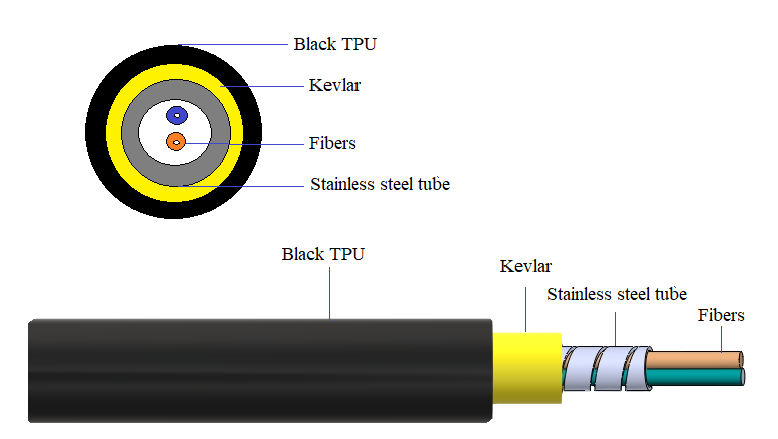

2 Core 5.0mm TPU Armored Cable

Parameter	Specification
Product configuration	2-Core ODC Plug-to-Plug Cable
Fiber count2	fibers
Fiber type	OS2 single-mode, G.657.A1 as standard; OM3/OM4 available on request
Fiber size	Single-mode: 9/125 µm; Multimode: 50/125 µm
Inner fiber construction	2 × tight-buffered fibers
Strength member	Aramid yarn
Armor	Flexible helical stainless-steel armor; SUS204 standard, SUS304 optional
Armor tube outer diameter	Ø2.8 ± 0.2 mm
Outer jacket	Black, UV-resistant polyether TPU; RoHS compliant
Finished cable diameter	Ø5.0 ± 0.2 mm
Cable length	Custom length
Breakout length	Custom to the approved drawing
Connector end A	ODC-2 plug or socket, selected to match the equipment interface
Connector end B	2× ODC connectors; UPC or APC polish as specified
Fiber mapping	One fiber to each LC connector; mapping confirmed on the assembly drawing
Short-term tensile strength	≥600 N
Long-term tensile strength	≥200 N
Crush resistance	≥3000 N/10 cm
Minimum bend radius	Dynamic: ≥20 × cable OD; Static: ≥10 × cable OD
Operating temperature	−40°C to +85°C
Storage temperature	−40°C to +85°C
Cable weight	Approx. 33 kg/km; cable only, subject to the selected construction

Frequently Asked Questions About 2-Core ODC Fiber Cable Assemblies

What is a 2-core ODC plug-to-plug fiber cable used for?

This 2-core ODC fiber cable assembly connects equipment with compatible ODC interfaces at both ends. Typical applications include FTTA links between RRU and BBU equipment, outdoor telecom links, and field communication systems that use matching ODC connectors.

Are the ODC-2 connectors IP68 rated?

The ODC connector interface is rated IP68 when fully mated and locked, according to the connector specification. This rating applies to the mated connector interface; confirm the cable route, protective caps, and installation conditions for your project.

Why use a 5.0mm TPU armored fiber cable?

This assembly uses a black TPU outer jacket, aramid yarn reinforcement, and flexible helical stainless-steel armor. The listed cable operating-temperature range is -40°C to +85°C. The cable specification lists crush resistance of ≥3,000 N/10 cm; confirm that value against the approved construction and test data for your order.

Are the ODC-2 plugs compatible with other manufacturers’ connectors?

Compatibility depends on the connector interface, keying, and mating design. Please provide the equipment model or mating-connector drawing so HHD Fiber can check the ODC-2 plug configuration before production.

Can I order different cable lengths or fiber types?

Yes. Cable length can be customized. The listed standard is single-mode G.657.A1; OM3 or OM4 multimode fiber can be requested. Confirm the required fiber type and connector configuration when requesting a quotation.

What are the tensile rating and mating durability?

The connector and cable have separate mechanical ratings, so check the approved specification for the exact assembly. The ODC connector specification lists a mating durability of 1,000 cycles.

Are protective dust caps available?

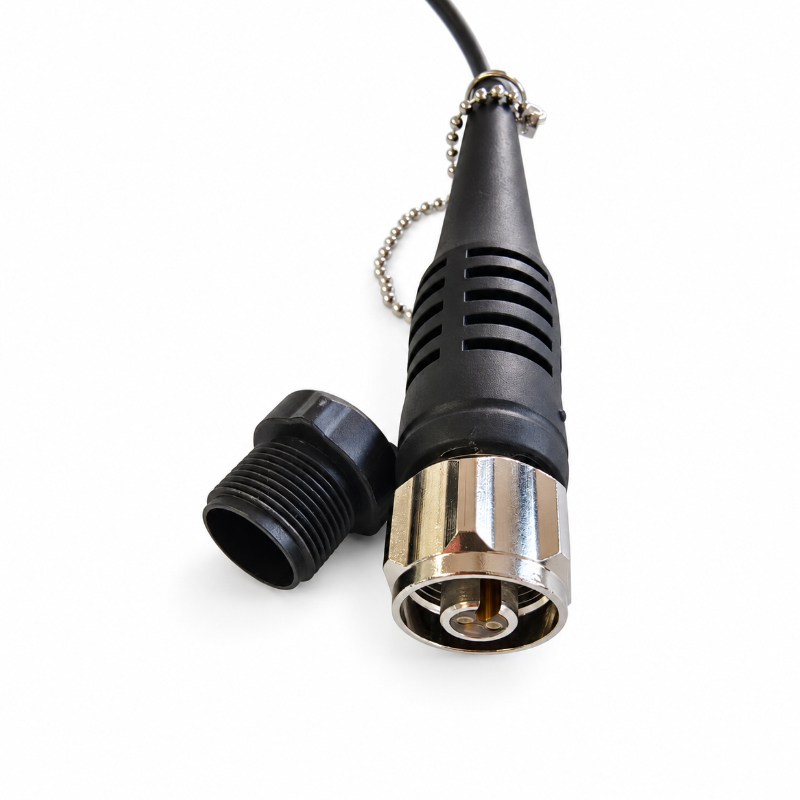

The ODC plugs can be supplied with tethered protective caps to help protect the connector end faces during transport, installation, and retrieval. Confirm the cap arrangement when ordering.

What is the lead time for a custom ODC cable assembly?

Sample and customized orders typically take 3–7 working days, depending on the cable length, configuration, and quantity. Confirm the schedule with HHD Fiber after the specifications are finalized.
