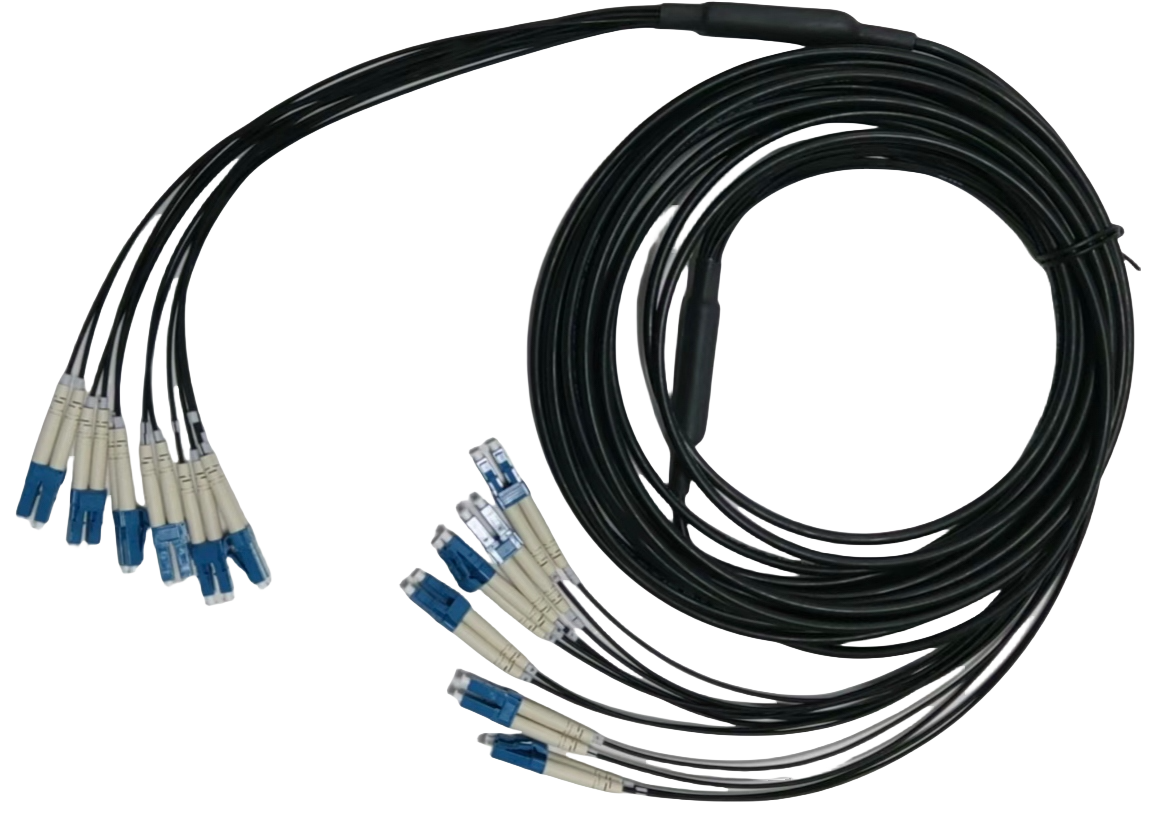

LC to LC fiber patch cord patch cable

LC to LC fiber patch cord patch cable

LC to LC patch cord
Cable Jacket	TPU
Fiber type	G652D
Fiber Attenuation	? 0.36dB/km ?=1310nm ; ?0.22dB/km ? =1550nm
Connector Options	LC, SC, ST, FC, MTP/MPO (Customizable)
Fiber Termination End 1	LC?SC?FC  single mode, YDT 2617-2013
Fiber Termination End 2	LC?SC?FC single mode, YDT 2617-2013
Connector Insertion Loss (according to YDT 2617-2013)	UPC(SM): Max. 0.30 dB
	APC(SM): Max. 0.25 dB
Connector Return Loss (according to YDT 2617-2013)	UPC(SM): Min. 50 dB
	APC(SM): Min. 60 dB

Parameter	Specification
Cable Type	Outdoor Armored Fiber Optic Cable
Cable Count	12 Core
Fiber Type	Single-Mode(OS2): 9/125 �m
	Multi-Mode: 50/125 �m or 62.5/125 �m(OM1/OM2/OM3/OM4/OM5)
Cable Diameter	?5.5 � 0.25 mm
Jacket Material	TPU, RoHS-Compliant
Armor Type	Stainless Steel armor
Tensile Strength	? 600 N (Short-Term)
	? 1200 N (Long-Term)
Crush Resistance	? 3000 N/10 cm
Bending Radius	Dynamic: 20x Cable Diamete
	Static: 10x Cable Diameter
Operating Temperature	-40�C to +85�C
Storage Temperature	-40�C to +85�C
TPU Jacket	Rodentproof,UV-Proof,Aging resistance
Attenuation	Single-Mode:1310 nm @ 1550 nm
	Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth	Multi-Mode: ? 200 MHz�km @ 850
	? 500 MHz�km @ 1300 nm
Connector Options	LC, SC, ST, FC (Customizable)?MTP,MPT
Cable Weight	39kg/km

Special Applications

*Broadcast,

*music events.

*militarly use

*outdoor emergency use

*fiber optic camera

*Live

?Product Features?

?Compact & Lightweight Design?

?High Tensile Strength?

?Robust Protection & Flexibility?
Spiral armored metal layer provides exceptional crush resistance while maintaining flexibility for easy bending.

?Enhanced Durability?

?Adaptable Jacket Options?
Customizable jacket materials ensure compatibility with diverse environmental conditions.
