Engineered for temporary deployments, outdoor live broadcasting, field operations, and harsh industrial sites, our 12 Core TPU Outdoor Armored Tactical Fiber Cable delivers high-performance optical connectivity built to withstand heavy foot traffic,rodent threats, and continuous UV exposure. Featuring exceptional crush resistance and flexible SUS stainless steel armor, it provides uncompromised optical reliability across endless deployment and retrieval cycles, highly optimized for frequent and repeated field use.

Hhd armored fiber optic cables are meticulously crafted by skilled technicians, utilizing premium-grade components to enhance durability. These armored fiber optic patch cables feature a stainless steel tubing structure, making them suitable for far more environments than regular fiber optic cables.  ensuring reliable performance in harsh conditions such as industrial zones, outdoor installations, or areas prone to physical stress.

TPU Protection: TPU jacket provides maximum defense against physical abrasion, and long-term UV degradation.
100% Rodent-Proof & Crush-Proof: Full metallic armor barrier blocks rodent biting and protects optical cores against high-tonnage vehicle pressure.
Rapid Deployment Ready: Maintains optimal bend radius and signal stability under repeated coiling, retrieval, and tactical spooling operations.

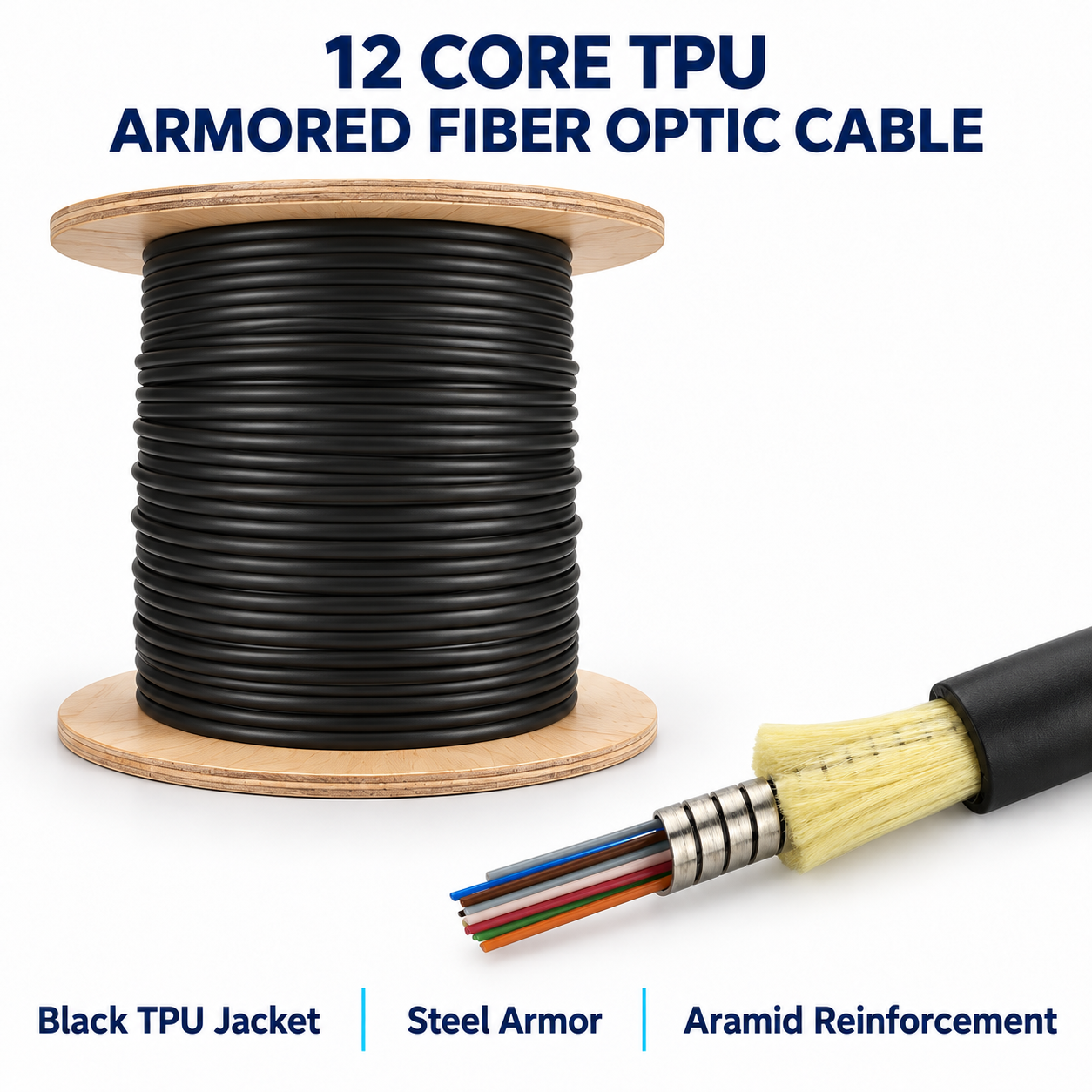

Cable stucture for reference.

Specification

Parameter	Specification
Cable Type	Armored Fiber Optic Cable with TPU Jacket - 12 Core
Cable Count	12 Core
Fiber Type	Single-Mode(OS2): 9/125 µm
	Multi-Mode: 50/125 µm or 62.5/125 µm(OM1/OM2/OM3/OM4/OM5)
Cable Diameter	Φ5.5 ± 0.25 mm，6.0 ± 0.25 mm
Jacket Material	TPU, RoHS-Compliant
Armor Type	Stainless Steel armor
Tensile Strength	≥ 800 N (Short-Term)
	≥ 500 N (Long-Term)
Crush Resistance	≥ 3000 N/10 cm
Bending Radius	Dynamic: 20x Cable Diamete
	Static: 10x Cable Diameter
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
TPU Jacket	Rodentproof,UV-Proof
Attenuation	Single-Mode:1310 nm @ 1550 nm
	Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth	Multi-Mode: ≥ 200 MHz·km @ 850
	≥ 500 MHz·km @ 1300 nm
Connector Options	LC, SC, ST, FC, MTP/MPO (Customizable)
Cable Weight	40kg/km

Key Advantages

Unmatched Durability
TPU Jacket: Superior resistance to abrasion, UV radiation, oils, and chemicals, ideal for industrial plants, mining, and offshore rigs.
Metal Armor Layer: Protects against crushing, rodent attacks, and accidental impacts during installation.
Extreme Environment Adaptability

High-Capacity & Signal Integrity
12-core design supports high-density data transmission for backbone networks, 5G infrastructure, or CCTV systems.
TPU jacket minimizes micro-bending losses, ensuring stable performance in dynamic applications (e.g., robotics, moving machinery).
Easy Installation & Cost Savings

Applications

Industrial Automation
-Factory robots, CNC machines, and conveyor systems exposed to oils, vibrations, and dust.
Outdoor & Harsh Environments
-Wind farms, oil pipelines, railway tracks, and military field communications.
Telecom & Data Centers
-High-speed backbone networks requiring crush-proof cabling in congested cable trays.
Security & Surveillance
- Rugged IP camera installations in ports, construction sites, or disaster-prone zones.

Why Choose Us?

Customization: Tailor armor type (steel/aluminum), fiber type, and length to your project.
Fast Global Shipping: with 3-15 day lead time.
Certified Quality: 100% tested with OTDR reports and compliance documentation included.

Relevant Description

1. Armored Fiber Optic Cable with TPU Jacket 12 Core
2. 12 Core TPU Jacket Armored Fiber Cable
3. Industrial TPU Jacket Fiber Optic Cable

Features

Crush-proof armored fiber cable for harsh environments
Flexible 12 core fiber optic cable with steel armor"
High-temperature resistant fiber optic cable 12 core"

Oil-resistant armored fiber optic cable industrial"

If you need pre-terminated 12-Core TPU Armored Tactical Fiber Cable connectors ST,SC,LC,FC,MPO,ODVA,ODC,J599 or others, view our

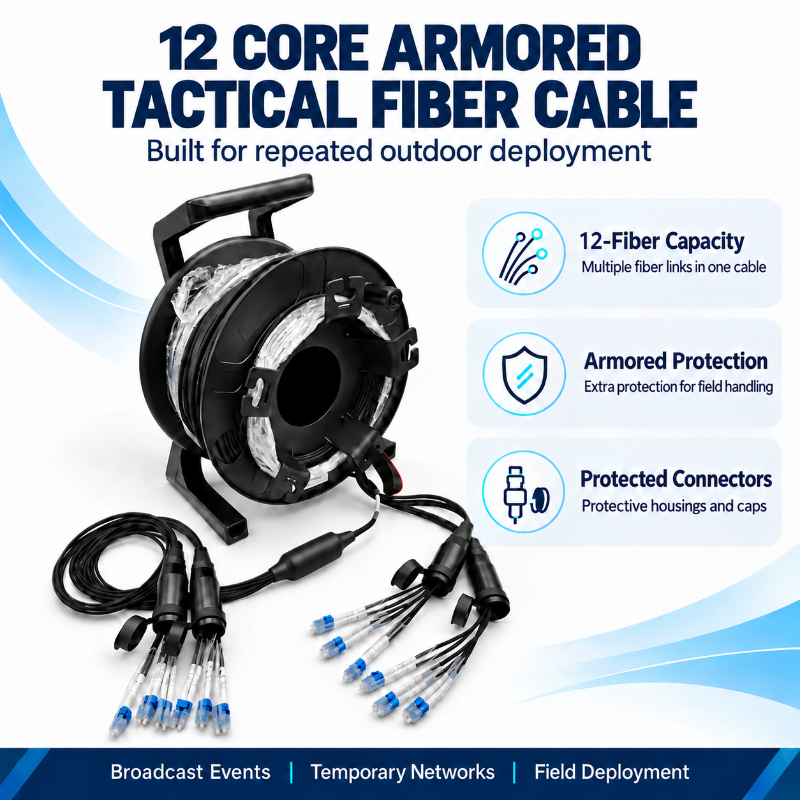

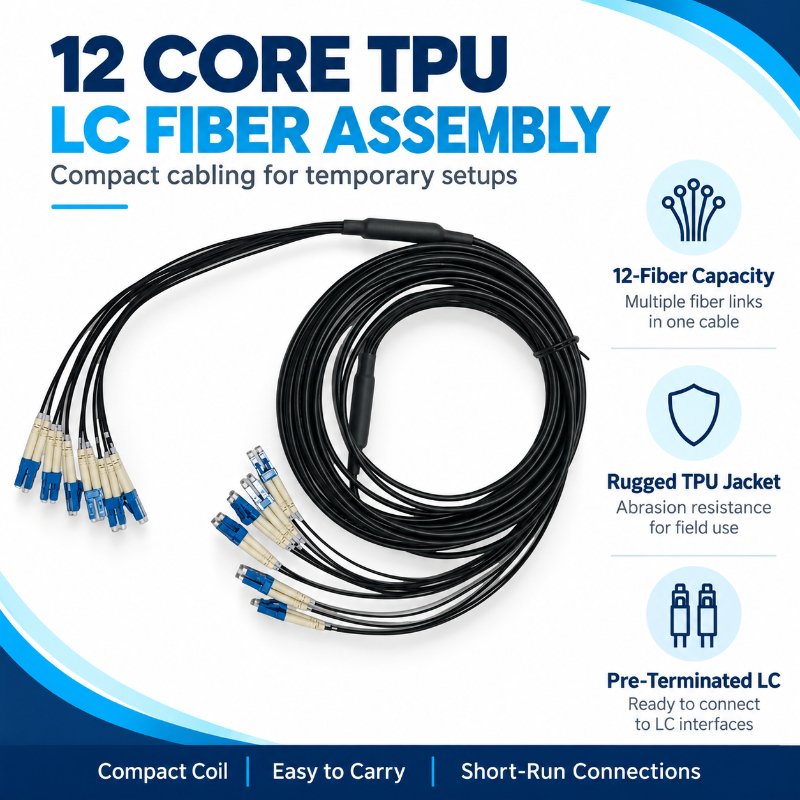

LC to LC 12 Core TPU Tactical Fiber Optic Cable Assembly with Reel|Rugged Field Deployable Fiber
