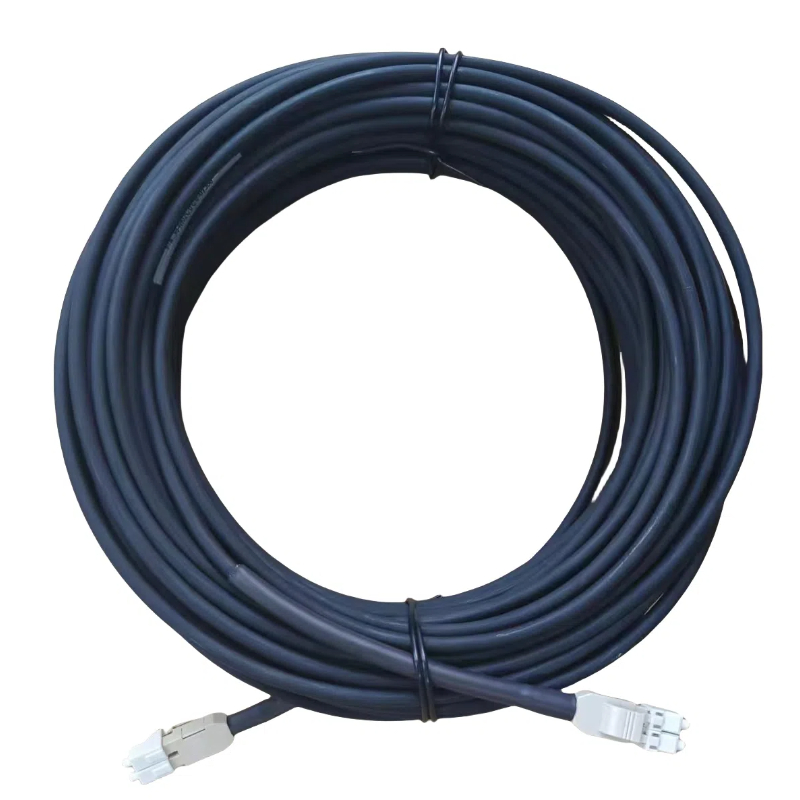

LC to LC Fiber Cable Multimode Armoured Patch Cords

Price：Negotiable

LC to LC Fiber Cable Multimode

Patch cord lc to lc

Cable Jacket	LSZH
Fiber type	OM3 50/125μm
Fiber Attenuation	Attenuation at 850 nm,Attenuation at 1300 nm 1.0dB/km
Wavelength	850/1300nm
Fiber Termination A	LC UPC Duplex
Fiber Termination B	LC UPC Duplex
Connector Insertion Loss	UPC(SM): Max. ＜0.3 dB
Connector Return Loss	UPC(SM): Min.＞25 dB

Cable specification

Parameter	Specification
Cable Type	TPU/LSZH (Low Smoke Zero Halogen) Armored Fiber Optic Cable
Fiber Type	Single-Mode(OS2): 9/125 µm
Fiber Type	Multi-Mode: 50/125 µm or 62.5/125 µm(OM1/OM2/OM3/OM4/OM5)
Cable Diameter	4.0mm ± 0.2,2.0mm±0.1,3.0mm±0.1
Jacket Material	LSZH Thermoplastic, RoHS-Compliant
Armor Type	Stainless Steel armor
Tensile Strength	≥ 1200 N (Short-Term)
Tensile Strength	≥ 600 N (Long-Term)
Crush Resistance	≥ 3000 N/10 cm
Bending Radius	Dynamic: 20x Cable Diamete
Bending Radius	Static: 10x Cable Diameter
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
Fire Rating	IEC 60332-3 (Flame Retardant), IEC 61034-2 (Low Smoke Emission)
Attenuation	Single-Mode:1310 nm @ 1550 nm
Attenuation	Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth	Multi-Mode: ≥ 200 MHz·km @ 850
Bandwidth	≥ 500 MHz·km @ 1300 nm
Connector Options	LC, SC, ST, FC, MTP/MPO (Customizable)

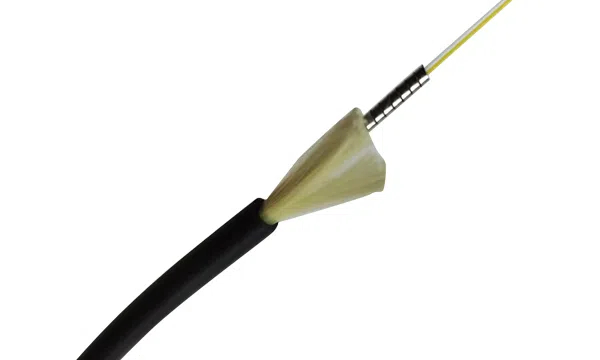

Cable structure:

Key Features of LC to LC Multimode Armored Patch Cords

*Stainless Steel Tube Protection: Incorporates a small-diameter stainless steel tube within the cable structure, providing enhanced tensile strength and superior resistance to rodent bites and mechanical stresses.

*Rugged and Durable Design: Engineered to withstand harsh construction environments, ensuring the cable remains intact and functional even under challenging conditions.

*Flexible Yet Strong: Maintains flexibility for easy installation while offering high resistance to pressure and bending, reducing the risk of damage during deployment.

*Aramid Yarn Reinforcement: Surrounded by a layer of aramid yarn, the cable gains additional tensile strength and protection against physical stresses.

*LSZH Outer Jacket: Features a Low Smoke Zero Halogen (LSZH) outer jacket, making it suitable for indoor installations where fire safety is a concern.

*Wide Operating Temperature Range: Capable of operating effectively in temperatures ranging from -45°C to 85°C, making it suitable for various environmental conditions.

*Low Insertion Loss: Designed to ensure minimal signal loss, maintaining high-performance data transmission across the network.
