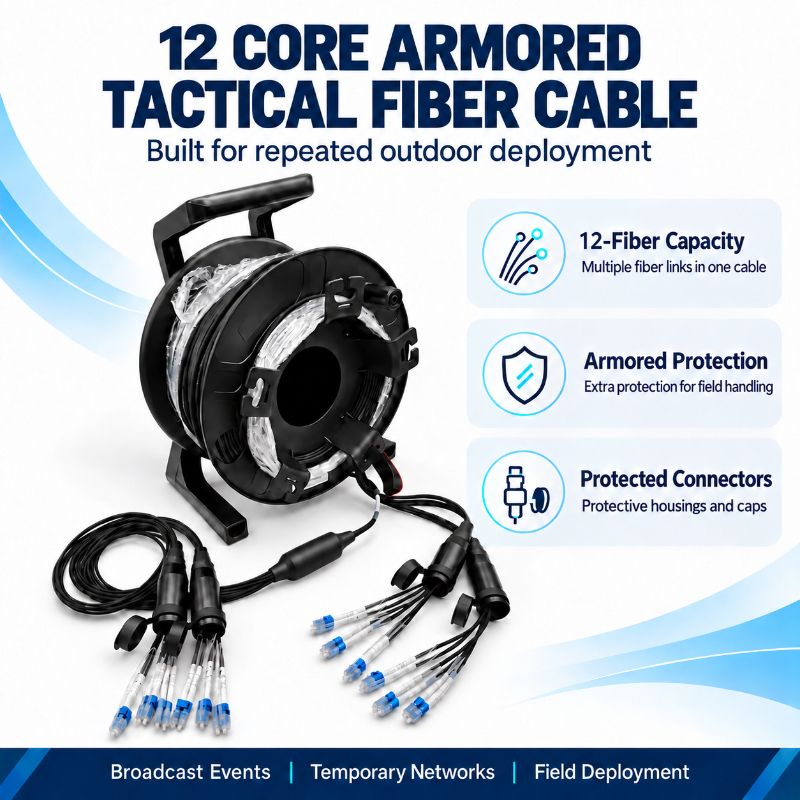

LC to LC 12 CoreTPU Tactical Fiber Optic Cable Assembly with Deployment Reel|Rugged Field Deployable Fiber

HHD Fiber supplies pre-terminated TPU tactical fiber optic cable assemblies for temporary outdoor links, live events, broadcast production and field communications.

Each assembly is configured according to the required fiber count, fiber type, cable length, connector interfaces and deployment conditions. The cable can be supplied on a selected reel as part of the finished assembly to support cable handling, deployment and retrieval.

The tactical cable construction can combine a flexible TPU outer jacket with helical stainless-steel armor. Reel and connector arrangements are confirmed for the cable configuration and project requirements.

Key Features

- Available in 2-, 4-，6-, 8- and 12-fiber configurations
- OS2 single-mode or OM3/OM4 multimode options, subject to configuration
- TPU-jacketed tactical cable with flexible stainless-steel armor, according to the selected construction
- Factory pre-terminated connector options, including LC, SC, ST and FC; selected field connectors can be discussed
- Custom cable length, breakout length, protective caps, labels and optical test documentation
- Deployment reel selected according to cable length, cable diameter, bend-radius requirements and connector arrangement
- The reel is supplied with the cable assembly; empty reels are not sold separately

Configurable Specifications

Connector	UPC	APC
Insertion Loss	≤0.3	≤0.3
Return Loss	>or=50dB	>or=60dB
Cable Diameter(mm)	0.9mm,2.0mm,3.0mm
Durability	(1000matings)<0.3dB
Interchanability	<0.3dB
Operating Temperature	-40C~+80C
Storage Temperature	-40C~+80C
Fible Type	Tight-Buffered fiber
Cable Jacket	LSZH
Fible Count	Single core fiber

Component	Property	Unit	12fibre 5.0mm OD.	12fibre 5.5mm OD.	12fbier 6.0mm OD.
Tight buffered/bare fibre	Fibre type	—	G.657.A1	G.657.A1	G.657.A1
Tight buffered/bare fibre	Diameter	mm	0.25	0.5	0.6
Spiral armour tube	Material	—	Stainless steel wire	Stainless steel wire	Stainless steel wire
Spiral armour tube	Outer diameter	mm	2.8 ± 0.1	2.8 ± 0.1	3.8± 0.1
inner cable	inner diameter	mm	3.0	--	--
	inner jacket	--	LSZH	--	--
Strength member	Material	—	Aramid yarn	Aramid yarn	Aramid yarn
Outer sheath	Material	—	TPU	TPU	TPU
	Colour	—	Black	Black	Black
Finished cable	Outer diameter	mm	5.0 ± 0.2	5.5 ± 0.2	6.0 ± 0.2
	Cable weight	kgs	about 36	about39	about56
Armor	Flexible helical stainless-steel armor, according to selected cable construction
Connector options	LC, SC, ST, FC,ODVA,ODC selected field connector options subject to confirmation
Cable length	Project-specific
Reel arrangement	Selected to suit cable and connector configuration
Testing	Optical test documentation can be agreed for the order

Applications

Temporary event and venue fiber links
Live broadcast and outdoor production
Remote camera and field equipment connections
Emergency network restoration
Temporary industrial and outdoor communications

How to Specify Your Assembly

To check a configuration, please provide:
- Required cable length and fiber count
- Fiber type or transceiver information
- Connector type at each end
- Breakout length and connector-tail arrangement
- Deployment frequency and cable-route conditions
- Preferred reel arrangement, if known

FAQ

Can the cable be supplied pre-terminated on a reel?

Yes. HHD Fiber can supply a factory pre-terminated tactical fiber cable assembly with a reel selected for the cable and connector configuration.

Can I buy the reel by itself?

Yes. Empty reels can also be purchased separately. The price is higher when the reel is ordered without an HHD Fiber cable assembly.

Is the assembly suitable for vehicle crossings or continuous immersion?

Our standard cable is supplied with a general protective outer jacket. Do not assume that the cable or its connectors are waterproof or suitable for vehicle crossings. For traffic crossings or wet environments, the route protection and complete connector system must be specified for the project.

Can I request a custom connector arrangement?

Connector type, breakout length and end arrangement can be reviewed against the connected equipment and project requirements.

If you need 12-core armored fiber cable in bulk without pre-terminated connectors, view our 12-Core TPU Armored Tactical Fiber Cable.
