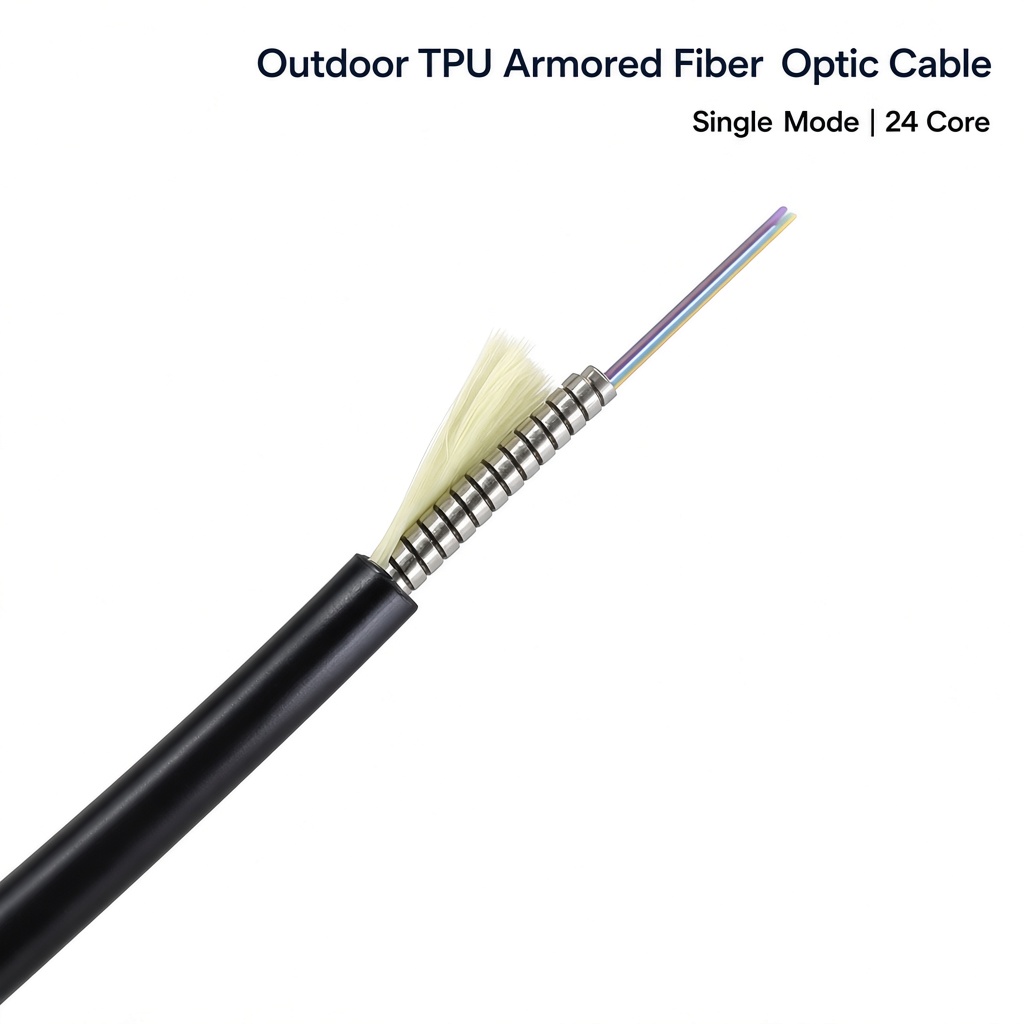

24 Core TPU Outdoor Armored Tactical Fiber Cable

In high-density temporary deployments, tactical communications, emergency rescue networks and harsh outdoor environments, conventional fiber cables may be exposed to physical impact, rodent damage, weather changes and repeated bending during deployment and retrieval. Standard outdoor cables are not always designed for frequent handling, dragging, crushing pressure or repeated reel use.

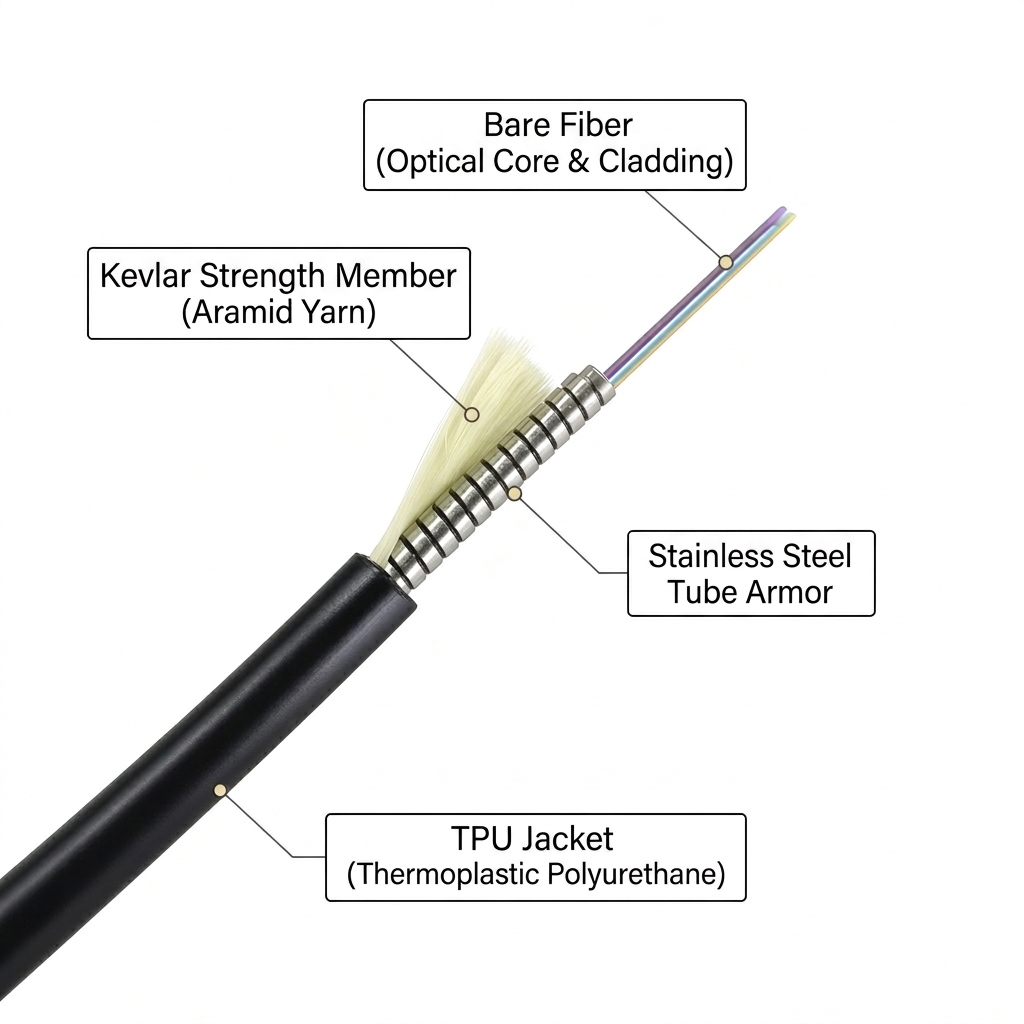

The 24 Core TPU Outdoor Armored Tactical Fiber Cable is designed for these demanding field conditions. It combines 24 optical fibers, flexible helical stainless-steel armor and a tough Thermoplastic Polyurethane (TPU) outer jacket to provide mechanical protection while maintaining flexibility. With crush resistance of ≥ 3500 N and an operating temperature range of -40°C to +80°C, this cable is suitable for temporary field operations, broadcast production, industrial sites and rugged outdoor fiber links.

Key Features

Heavy-Duty TPU Outer Sheath:
Provides strong resistance to abrasion, UV exposure and repeated dragging during outdoor deployment.
Stainless-Steel Armor Protection:
Flexible helical SUS304 stainless-steel armor helps protect the fibers against crushing, impact and rodent damage.
High Core Density in Compact Size:
Provides 24 optical channels in a compact 5.0 mm ± 0.2 mm cable diameter, with an approximate cable weight of 32 kg/km.
Wide Operating Temperature Range:
Designed for outdoor use from -40°C to +80°C.
Pre-Termination & Waterproof Options:
Available with LC, SC, ST, FC, MPO/MTP or selected waterproof field connectors according to project requirements.
TPU Outdoor Series
Our TPU Outdoor Series offers different fiber-count options for outdoor tactical and temporary deployment applications:
2-Core TPU Armored Tactical Fiber Cable
4-Core TPU Armored Tactical Fiber Cable
6-Core TPU Armored Tactical Fiber Cable
8-Core TPU Armored Tactical Fiber Cable
12-Core TPU Armored Tactical Fiber Cable
24-Core TPU Armored Tactical Fiber Cable

Target Applications

Tactical Field Communications:
Rapid deployment and retrieval systems for mobile base stations, temporary field networks and command-center links.
Outdoor Video Production & Broadcasting:
Fiber links for live events, sports arenas, outdoor production, remote camera positions and temporary broadcast systems.
Industrial & Harsh Environment Infrastructure:
Outdoor fiber connections for industrial sites, energy facilities, construction areas, security systems and other demanding environments.
Emergency Network Restoration & Temporary Links:
Temporary fiber bypasses, disaster recovery networks and rapid-response communication links.

24 Core Outdoor Cable and Assembly Specifications

Parameter	24core outdoor armored tactical fiber cable
Fiber Type	Single-Mode (OS2) / Multi-Mode (OM1, OM2, OM3, OM4)
Core Diameter	Single-Mode: 9/125 µm
	Multi-Mode: 50/125 µm or 62.5/125 µm
Outer Cable Diameter	5.0mm  ± 0.2
Jacket Material	TPU for outdoor tactical
Armor Type	Stainless Steel armor
Tensile Strength	≥ 400 N (Short-Term)
	≥ 200 N (Long-Term)
Crush Resistance	≥ 3500 N
Operating Temperature	-40°C to +80°C
Storage Temperature	-40°C to +80°C
Attenuation	Single-Mode:1310 nm @ 1550 nm
	Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth	Multi-Mode: ≥ 200 MHz·km @ 850
	≥ 500 MHz·km @ 1300 nm
Connector Options	LC, SC, ST, FC,MPO/MTP Waterproof connector (Customizable)
Cable weight	32kgs/km
Application	Harsh Environment/Outdoor use

Frequently Asked Questions

 Q1: What type of armored fiber cable is suitable for repeated outdoor deployment in temporary events and live broadcasting?

For high-density outdoor deployments that require frequent retrieval, a 24 Core TPU Armored Tactical Fiber Cable is a suitable option. Compared with standard PVC or PE outdoor cables, TPU-jacketed armored tactical cable is better suited for repeated handling, dragging, spooling and field deployment.
This construction is useful because:
TPU Outer Jacket:
TPU provides abrasion resistance, UV resistance and flexibility during repeated outdoor deployment.
Helical Stainless-Steel Armor:
The flexible stainless-steel armor helps protect the optical fibers against crushing, impact and rodent damage.
Compact 24-Core Design:
The cable provides 24 optical fibers in a compact 5.0 mm structure, making it suitable for high-density temporary fiber links and reel-based deployment.

Q2: Can this 24-core armored cable be used in cold outdoor environments down to -40°C?

Yes. This 24 Core OS2 TPU Tactical Armored Fiber Optic Cable is designed for outdoor environments with an operating temperature range from -40°C to +80°C. The TPU jacket and stainless-steel armor help improve durability in cold, outdoor and mechanically demanding conditions.
Key features include:
Rodent and Crush Resistance:
The helical stainless-steel armor provides a physical protection layer against rodent damage and crushing pressure.
Wide Temperature Range:
The cable is designed for outdoor operation from -40°C to +80°C.
Flexible Field Handling:
The cable supports short-term tensile load up to 400 N and can be supplied on a suitable reel for temporary deployment and retrieval.

Q3: Can HHD supply custom 24-fiber OM3/OM4 tactical cable assemblies with waterproof connectors?

Yes. HHD can supply custom pre-terminated 24 Core OM3/OM4 TPU Armored Tactical Fiber Cable assemblies for industrial, broadcast and outdoor applications.
Available customization options include:
Connector Options:
LC, SC, ST, FC, MPO/MTP, ODC and selected waterproof field connectors.
Breakout Design:
Custom breakout legs with 2.0 mm, 3.0 mm tubing, aramid reinforcement and heat-shrink protection.
Cable Reel Options:
Portable tactical cable reels with connector protection, labeling and project-specific cable lengths.
Testing and Documentation:
Finished assemblies can be optically tested before shipment, with test reports available upon request.
