24 Core TPU Outdoor Armored Tactical Fiber Cable| MPO/MTP Trunk & Fanout Deployable Field Cable

This 24-core TPU outdoor armored tactical fiber cable is a deployable tactical fiber cable designed for portable, temporary and repeat-deployment fiber links in broadcast production, emergency communications, industrial sites and rugged outdoor environments. It combines 24 optical fibers, flexible helical stainless-steel armor and a durable Thermoplastic Polyurethane (TPU) jacket to provide mechanical protection while maintaining flexibility for handling and reel use. The cable has a crush resistance of ≥3000 N and an operating temperature range of -40°C to +80°C.

It is available as bulk cable or as a pre-terminated fiber assembly.When MPO/MTP or LC/SC connectors are specified, it can be supplied as a pre-terminated patch lead assembly, MPO/MTP trunk cable, or fanout fiber cable; connector types, breakout lengths and reel packaging depend on project requirements.

For buyers searching for a military-grade field optical cable, this cable may be evaluated for field communication projects according to the required specifications. Military-grade compliance or certification should be confirmed against the project requirements.

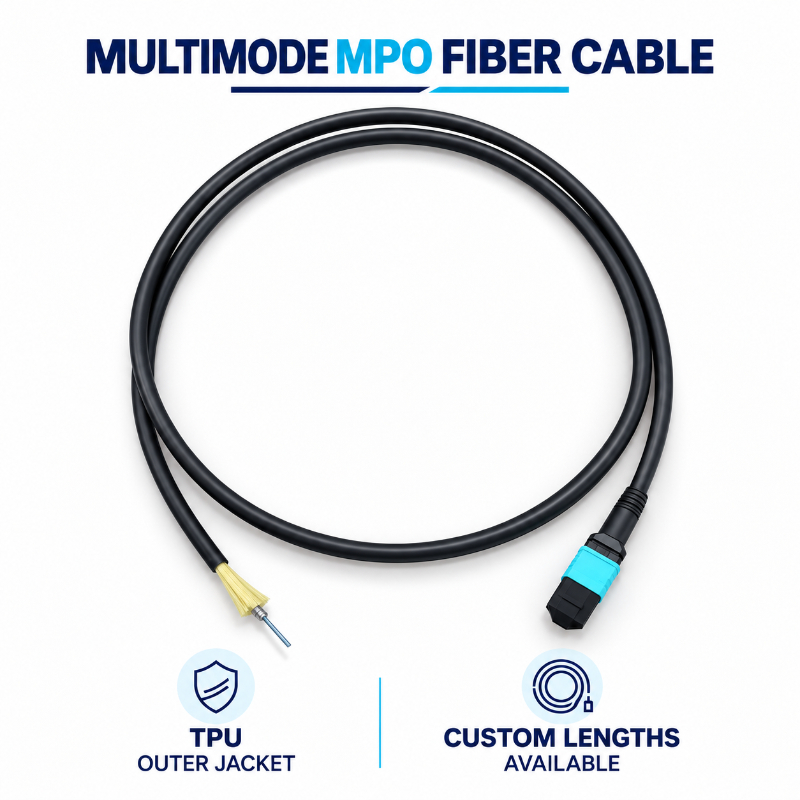

It is available as bulk cable or as a pre-terminated fiber assembly. When MPO/MTP connectors are specified, it can be configured as an MPO/MTP trunk or fanout assembly; connector, breakout and cable-end details depend on the project design.

Key Features

Heavy-Duty TPU Outer Sheath:
Provides strong resistance to abrasion, UV exposure and repeated dragging during outdoor deployment.
Stainless-Steel Armor Protection:
Flexible helical SUS304 stainless-steel armor helps protect the fibers against crushing, impact and rodent damage.
High Core Density in Compact Size:
Provides 24 optical channels in a compact 5.0 mm ± 0.2 mm cable diameter, with an approximate cable weight of 32 kg/km.
Wide Operating Temperature Range:
Designed for outdoor use from -40°C to +80°C.
Pre-Termination & Waterproof Options:
Available with LC, SC, ST, FC, MPO/MTP or selected waterproof field connectors according to project requirements.
TPU Outdoor Series
Our TPU Outdoor Series offers different fiber-count options for outdoor tactical and temporary deployment applications:
2-Core TPU Armored Tactical Fiber Cable
4-Core TPU Armored Tactical Fiber Cable
6-Core TPU Armored Tactical Fiber Cable
8-Core TPU Armored Tactical Fiber Cable
12-Core TPU Armored Tactical Fiber Cable
24-Core TPU Armored Tactical Fiber Cable

Target Applications

Tactical Field Communications:
Rapid deployment and retrieval systems for mobile base stations, temporary field networks and command-center links.
Outdoor Video Production & Broadcasting:
Fiber links for live events, sports arenas, outdoor production, remote camera positions and temporary broadcast systems.
Industrial & Harsh Environment Infrastructure:
Outdoor fiber connections for industrial sites, energy facilities, construction areas, security systems and other demanding environments.
Emergency Network Restoration & Temporary Links:
Temporary fiber bypasses, disaster recovery networks and rapid-response communication links.

24 Core Outdoor Cable and Assembly Specifications

Parameter	24core outdoor armored tactical fiber cable
Fiber Type	Single-Mode (OS2) / Multi-Mode (OM1, OM2, OM3, OM4)
Core Diameter	Single-Mode: 9/125 µm
	Multi-Mode: 50/125 µm or 62.5/125 µm
Outer Cable Diameter	5.0mm  ± 0.2
Jacket Material	TPU for outdoor tactical
Armor Type	Stainless Steel armor
Tensile Strength	≥ 400 N (Short-Term)
	≥ 200 N (Long-Term)
Crush Resistance	≥ 3500 N
Operating Temperature	-40°C to +80°C
Storage Temperature	-40°C to +80°C
Attenuation	Single-Mode:1310 nm @ 1550 nm
	Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth	Multi-Mode: ≥ 200 MHz·km @ 850
	≥ 500 MHz·km @ 1300 nm
Connector Options	LC, SC, ST, FC,MPO/MTP Waterproof connector (Customizable)
Cable weight	32kgs/km
Application	Harsh Environment/Outdoor use

Frequently Asked Questions

Q1: What type of armored fiber cable is suitable for repeated outdoor deployment in temporary events and live broadcasting?

For high-density outdoor deployments that require frequent retrieval, a 24 Core TPU Armored Tactical Fiber Cable is a suitable option. Compared with standard PVC or PE outdoor cables, TPU-jacketed armored tactical cable is better suited for repeated handling, dragging, spooling and field deployment.
This construction is useful because:
TPU Outer Jacket:
TPU provides abrasion resistance, UV resistance and flexibility during repeated outdoor deployment.
Helical Stainless-Steel Armor:
The flexible stainless-steel armor helps protect the optical fibers against crushing, impact and rodent damage.
Compact 24-Core Design:
The cable provides 24 optical fibers in a compact 5.0 mm structure, making it suitable for high-density temporary fiber links and reel-based deployment.

Q2: Can this 24-core armored cable be used in cold outdoor environments down to -40°C?

Yes. This 24 Core OS2 TPU Tactical Armored Fiber Optic Cable is designed for outdoor environments with an operating temperature range from -40°C to +80°C. The TPU jacket and stainless-steel armor help improve durability in cold, outdoor and mechanically demanding conditions.
Key features include:
Rodent and Crush Resistance:
The helical stainless-steel armor provides a physical protection layer against rodent damage and crushing pressure.
Wide Temperature Range:
The cable is designed for outdoor operation from -40°C to +80°C.
Flexible Field Handling:
The cable supports short-term tensile load up to 400 N and can be supplied on a suitable reel for temporary deployment and retrieval.

Q3: Can HHD supply custom 24-fiber OM3/OM4 tactical cable assemblies with waterproof connectors?

Yes. HHD can supply custom pre-terminated 24 Core OM3/OM4 TPU Armored Tactical Fiber Cable assemblies for industrial, broadcast and outdoor applications.
Available customization options include:
Connector Options:
LC, SC, ST, FC, MPO/MTP, ODC and selected waterproof field connectors.
Breakout Design:
Custom breakout legs with 2.0 mm, 3.0 mm tubing, aramid reinforcement and heat-shrink protection.
Cable Reel Options:
Portable tactical cable reels with connector protection, labeling and project-specific cable lengths.
Testing and Documentation:

Finished assemblies can be optically tested before shipment, with test reports available upon request.

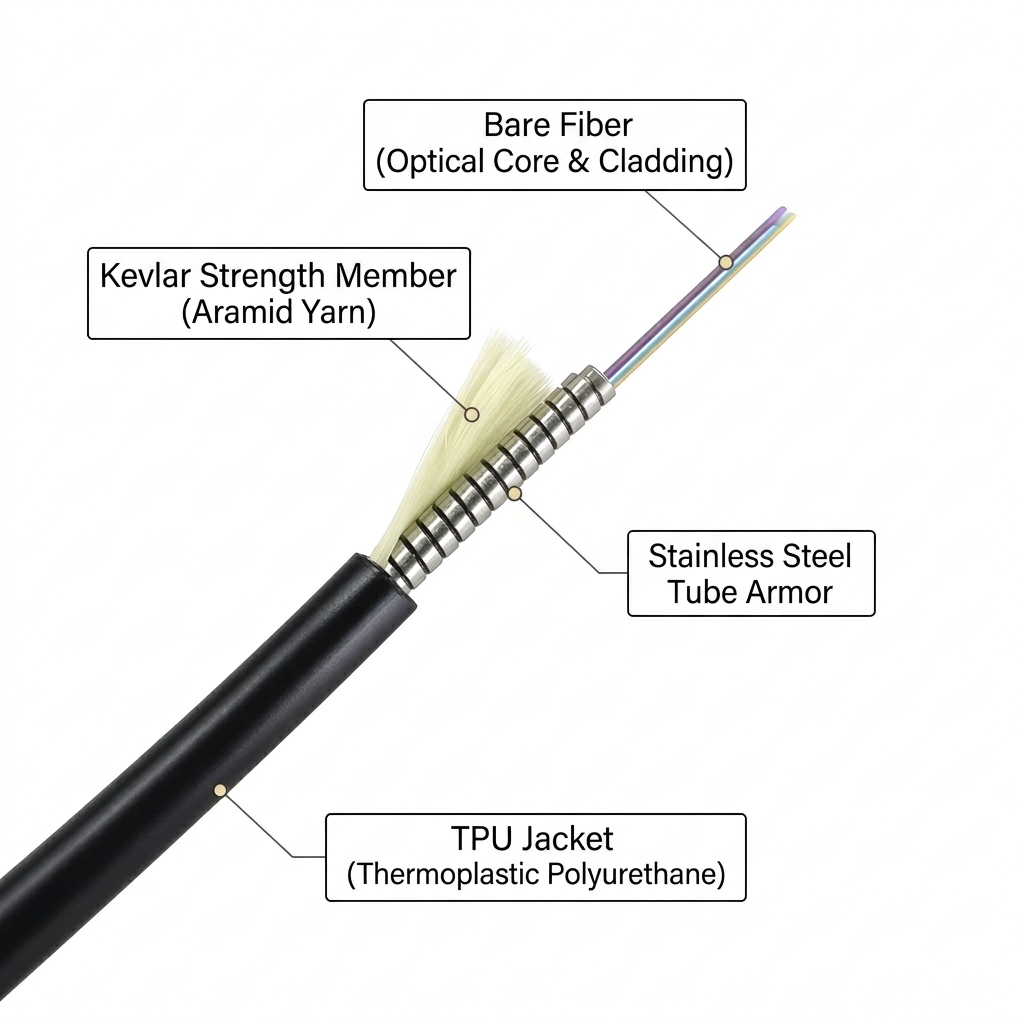

24 Core + TPU Jacket + Armored (Stainless steel tube or aramid strength) + Optional MPO/MTP or LC/SC/FC Fanout Connector
